XW-111 | Wireless Digital Input Monitor

Availability:
Out-Stock
Measure and report a device's status using a digital input from this precision Wi-Fi digital input monitor. Use as a stand-alone or slave device

$10,000.00 USD

Sold Out

SKU:
XW-111B, XW-111B+PS5VW1.0-2.5mm

PRODUCT INFO

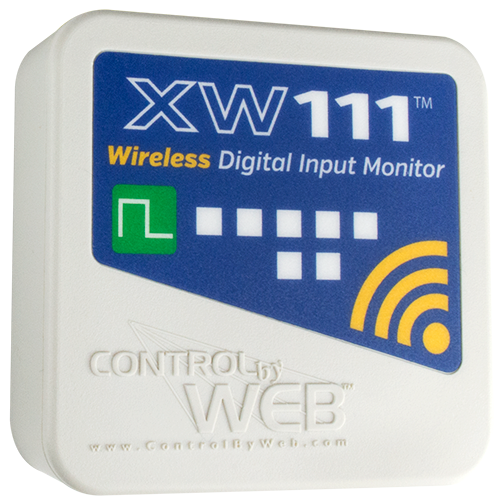

The XW-111 is an easy-to-use, wireless digital input monitoring device with a built-in web server. The XW-111 monitors and reports the status of switch closure sensors and alarms. It's ideal for applications where a device's status must be monitored and Ethernet wiring is not accessible or practical to install.
The XW-111 can sense the state of up to two switch-closure sensors, such as: push buttons, magnetic door alarm switches, micro-switches, or any device which has a relay or switch closure output. The XW-111 can be configured for the alarm to be active when the switch is either open or closed.

Features:

  • Wireless Wi-Fi 802.11 b/g/n
  • Wi-Fi transmission range up to 250ft*
  • Small data packets provide long battery life
  • Built-in web server for configuration and remote monitoring
  • Email/Text alerts for digital input status, and low battery alerts.
  • Notification scheduling - Specify when an email/text alert should be sent.
  • Connect a variety of switch-closure sensors
  • Powered by external DC power adapter or two AA batteries (battery usage for backup/low power applications only)
  • Each input status can control a relay on another ControlByWeb device
  • Supported protocols: HTTP, XML, SSL, SMTP, Remote Services
  • Simple and easy to use

TWO MODES OF OPERATION:

       1. Stand-Alone Mode
This mode makes the XW-111 a self-contained device that requires no additional servers or ControlByWeb devices. While in Stand-Alone mode the XW-111 can provide live, real-time input status directly to users through web browsers or the CBW Mobile app.
In addition, Stand-Alone mode offers the ability to simply monitor input status and send out email alerts (which can be converted to text message alerts) either weekly or whenever an alarm condition occurs.

In Stand-Alone mode, the XW-111:

  • Connects directly to Wi-Fi network - No gateway devices required
  • Does not require any cloud servers
  • Supports encrypted and un-encrypted email servers for sending temperature alerts
  • Allows you to customize when a email/text alert should be enabled/disabled (e.g., Disable door notifications: M-F, 8am-5pm)

Additional Stand-Alone Mode Features:

       1. View Real-Time Input Status
Use the XW-111's built-in web pages to view real-time input status.

  • AC adapter for main power and batteries for backup
  • Static IP address and port forwarding required

       2. Email Alerts During Alarm Conditions
Send emails/texts for on/off sensor status.

  • Battery or AC adapter powered
  • DHCP or static IP address (no static IP address required)
  • No port forwarding required

       3. Control Relays in Remote Locations
Control the relays on other ControlByWeb devices to turn on lights, bells, alerts, etc.

  • Battery or AC adapter powered
  • Control remote relays on other ControlByWeb products

       2. Slave Mode
This mode is used for measuring and reporting an input status to other ControlByWeb devices. While in Slave mode the XW-111's web interface is not directly accessible to the user, instead input status is simply transmitted to another ControlByWeb device that supports input status monitoring, such as the X-600M controller, which acts as a "master" device. The master device uses the XW-111's input status information as it would use information collected by any other input.

Note on power: The XW-111 is powered by an external 5VDC wall transformer, or by two internal AA batteries. Only use batteries to provide backup power, or for modes where the web server is not being used. Some configurations consume more power than others which can make battery operation impractical. Having more features enabled and/or increased sampling frequencies lead to lower battery life.

In Slave Mode, the XW-111:

Provides Input Information to Other ControlByWeb Devices
Acts as a wireless input for other ControlByWeb products, such as the X-600M.

  • Connects to Wi-Fi network
  • Use as wireless sensor for other ControlByWeb devices
  • Battery powered for limited number of transmissions or AC adapter powered for more frequent transmissions

Applications

Wi-Fi Digital Input Applications
Because the XW-111 can be used as a stand-alone or slave device, it excels in wide variety of applications where it can be used as a drop-in solution where hard wiring isn't practical or convenient. Some example applications include:

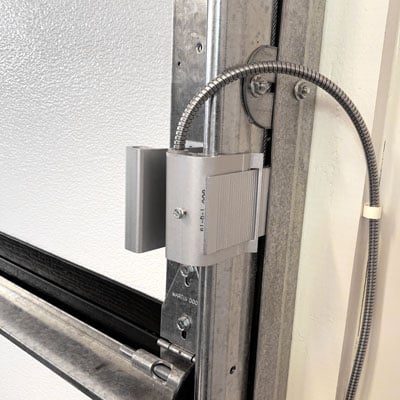

  • Door Open/Close
  • Window Open/Close
  • Motor On/Off
  • Water/Leak Detector
  • Mechanical Switch/Push-Button
  • Loop Detector

Once connected to the network, you can access the input's setup and control pages on a web browser where you can adjust the settings, or view the current input status on the XW-111's control page. The web interface is extremely easy-to-use, and can be viewed on the XW-111 Demo Page.

Cost Effective
There is no special software to download, no drivers to install, and no monthly subscription. Monitoring inputs with the XW-111 is easy whether you are in the field, in the office, or on vacation. It is the ultimate solution to your wireless digital input monitoring needs!

XW-111 Part Numbers:

       1. XW-111B+PS5VW1.0-2.5mm
INPUTS: Digital: 2 (0-3.3VDC)
POWER SUPPLY: 2AA batteries, or external 5VDC power supply (5V power supply included)

       2. XW-111B
INPUTS: Digital: 2 (0-3.3VDC)
POWER SUPPLY: 2AA batteries, or external 5VDC power supply

Electromagnetic Compliance:

  • FCC ID: 2AE4Z-XWD001
  • IC: 21441-XWD001
  • FCC 47CFR15 (Class B)
  • IEC CISPR 22, CISPR 24
  • EN55024 ITE Immunity (2010)
  • EN55022 Emissions (2010)

Product Safety Compliance:

  • IEC 61010-1

SPECIFICATIONS

Power Requirements
Voltage2AA batteries, or external 5VDC power supply
Max Current 500ma max (via DC power wall adapter)
DC Jack
5.5mm barrel x 2.5mm center pin (positive)



Battery
InternalTwo replaceable 1.5V "AA" cells
Power Consumption27-770uA sleep, 59mA active RX, 229mA TX (at +12dBm)
Battery LifeUp to 1-year, depending on mode, security and reporting frequency. Battery life is affected by mode, reporting interval, security, DHCP, DNS, battery temperature, and other variables
Battery UsageBattery voltage is measured and periodically reported


Operation
ProvisioningVia internal web server (no cables or PC utilities needed)
Access PointYes, push button activated (setup via web page)
WPSYes, push button activated (Wi-Fi Protected Setup)
ConnectivityIntermittently connected or always connected
XCD Data Packet UDP, 10-bytes (See Appendix A)
Remote Server (Optional)ControlByWeb's X-600M™, or cloud-based server
Pollingstate.xml (only with always-connected)


Digital Inputs

Number of Relays2
Type
Non-Isolated
Voltage Range
0-3.3VDC
Current
200K Pullup
Minimum Hold Time
(Awake) 30mS
Minimum Hold Time
(Asleep) 100ms
Input Isolation
Non-Isolated
Input Functions
Monitor State, Trigger Email Alerts, Control Remote Relays
Edge Trigger
Rising, Falling or Both


Physical
Size

3.16 (80mm) wide
3.04in (77mm) tall
0.91in (23mm) deep

Weight0.15 lb
Location
 Indoor use or NEMA-4 protected location
Using Alkaline Batteries
-18°C to 55°C (0°F to 130°F)
Operating Temperature
-40°C to 65°C (-40°F to 150°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5-95%, non-condensing
Enclosure MaterialLexan 940 Polycarbonate Plastic
Enclosure Flame RatingUL94 V0



Password Settings
Password protection on setup pageYes
Password protection on control pageOptional
Password EncodingBase 64
Password Length13 Characters
