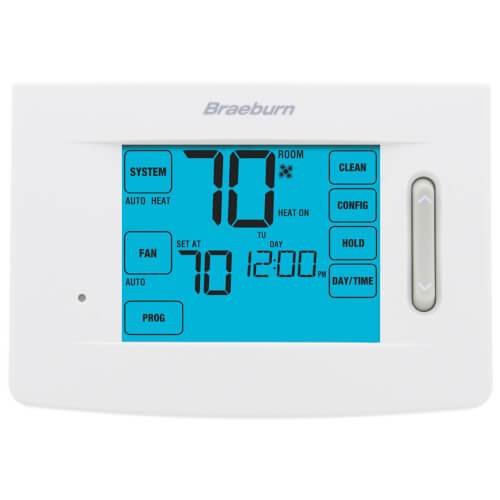

Braeburn Premier Model 5320 Programmable Touchscreen Thermostat (4 Heat/2 Cool)

Availability:
In-Stock
  • Programming: 7 Day, 5-2 Day, or Non-Programmable
  • Warranty: 5 Year

$111.93 USD

Title
Buy Now

PRODUCT INFO


Features

  • 7 Day, 5-2 Day or Non-Programmable
  • Large 6.5 sq. in. Easy-Read Touchscreen
  • Auto or Manual Changeover
  • Bright Blue Backlight Display
  • SpeedBar Multi-Function Button
  • Residential or Commercial Modes
  • Adjustable Temperature Limits
  • Indoor or Outdoor Remote Sensing
  • SpeedSet 7 Day Programming Mode
  • User Selectable Service Monitors
  • Separate User and Installer Reset Buttons
  • Auxiliary Heat Fossil Fuel Option
  • Hardwire or Battery Powered
  • Multi-Level Keypad Lockout
  • Economizer Control
  • Circulating Fan Mode
  • Programmable Fan Mode

Warranty 5 Year

SPECIFICATIONS




Dimensions:
3.94” x 5.56” x 1.19”

Electric Rating:
24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
 7 amp total maximum load (all terminals)

AC Power:
18-30 Volt AC

DC Power:
3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:
Heat pump systems up to 4 heat/2 cool,
Conventional systems up to 3 heat/2 cool
 250mv – 750mv millivolt heating systems

Control Range:
45° to 90° F (7° to 32° C)

Display Range:
40° to 99° F (5° to 37° C)

Accuracy:
+/- 1° F (+/- .5° C)

Temperature Differential:
1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
2nd, 3rd and 4th Stage - 1°, 2°, 3°, 4°, 5°, or 6° F
(0.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)

Storage Temperature:
14° to 140° F (-10° to 60° C)

Operating Humidity:
5% to 95% Relative Humidity

Terminations:
A, G, Rc, Rh, W2/AUX2, W3/O/B, Y1, Y2, W1/E/AUX1, C, L, S1, S2
