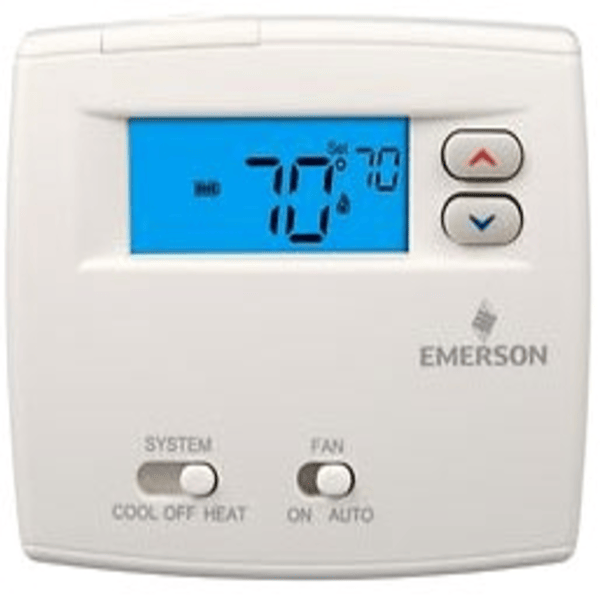

White-Rodgers 1F86-0244 Non-Programmable, 1H/1C, Blue 2" Digital Thermostat, Replaces 1F86-344
- Thermostat
- Type Non-Programmable, 1-Heat/1-Cool (1-Stage/Heat Pump)
- Cover Type Rectangular Horizontal
- Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire)
- Current Rating 0.05 to 1.5 Amp (Load Terminal)
- Temperature Rating 32 to 105 Deg F
- Size 4.8 Inch Width x 1.5 Inch Depth x 3.8 Inch Height
- Display Size 2 Square Inch
- Display Color Blue
- Set Point Temperature 45 to 90 Deg F
- Display Temperature 32 to 99 Deg F
- Terminal Designation R, C, Y, W, G, O/B
- Humidity 90 Percent (Non-Condensing)
- Application Gas, Oil, Electric, Millivolt Compatible
- Applicable Standard NEC Class II
$50.00 USD
SKU:
1F86-0244
ID:
WR100-1S9-1171
Categories:
SPECIFICATIONS
| Color | White | |
| Power Method | Hardwired or Battery | |
| Stages Heat/Cool | 1/1 | |
| System Application | Heat Only | |
| Terminal Designations | R,C,Y,W,G,O/B | |
| Shipping Weight | 0.55 | |
| Shipping Width | 4.30 | |
| Shipping Length | 6.30 | |
| Shipping Height | 1.80 |
