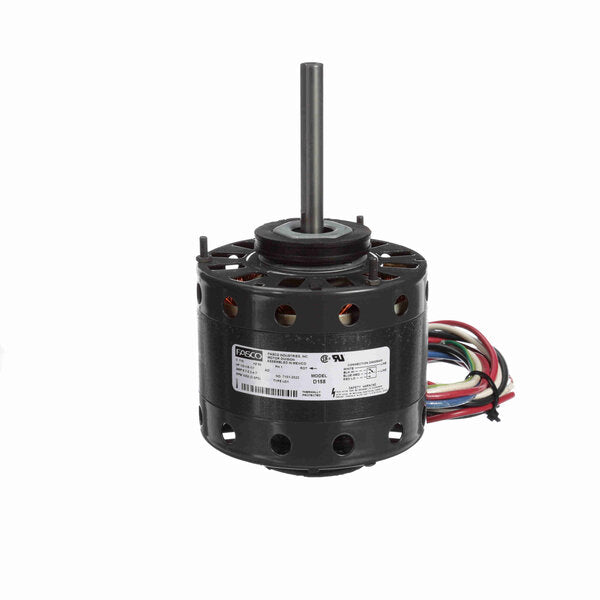

Fasco Unit Heater-Blower, 1050 RPM, 1/5-1/6-1/7 HP, 115 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Resilient Ring Mounting, Belly Band

$157.00 USD

Sold Out

SKU:
D158
ID:
HM103-1S9-0001

PRODUCT INFO

Applications
1-, 2- and 3-speed motors designed as replacements on central heating and direct drive blower units. May also be used for ventilators, exhaust fans, etc.


SPECIFICATIONS

Nameplate Specifications
UPC815585028703
Output HP1/5-1/6-1/7 Hp
Frequency60 Hz
Current6.7/5.3/4.7 A
Service Factor1
DutyAir Over
Frame42
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1050 rpm
Phase1
Insulation ClassA
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length6.75 in
Shaft Extension4.16 in
RotationClockwise Shaft End
Frame MaterialNa
Overall Length8.79 in
Shaft Diameter0.500 in
