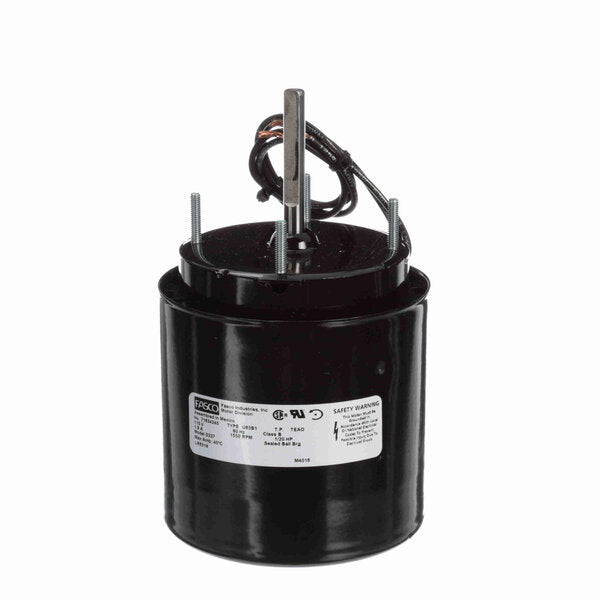

Fasco Unit Heater-Blower, 1500 RPM, 1/20 HP, 115 V, 3.3" Diameter, Totally Enclosed Fan Cooled

Availability:
In-Stock
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End

$266.00 USD

Title
Buy Now
SKU:
D227
ID:
HM103-1S9-0002

PRODUCT INFO

Applications
Central heating and direct drive blower units in humid or dusty areas

Features
Thermally protected |Shaft: flatted |Cooling case may be removed if necessary to use as totally enclosed motor. Studs: four, 3/4" long on 2.84" centers, #8-32 thread

SPECIFICATIONS

Nameplate Specifications
UPC815585029137
Output HP1/20 Hp
Frequency60 Hz
Current1.80 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1500 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length2.82 in
Shaft Extension2.30 in
RotationCounterclockwise Shaft End
Frame MaterialSteel
Overall Length6.57 in
Shaft Diameter0.312 in
