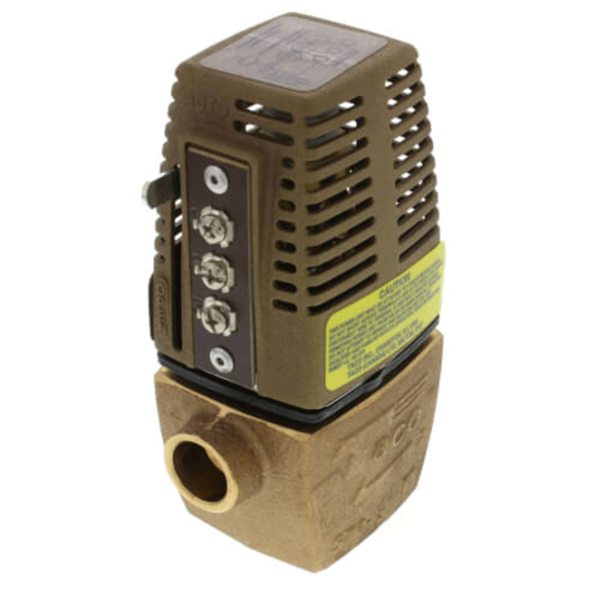

Taco 570-2 1/2" Sweat Zone Valve
When you want the industry standard for hydronic heating applications, choose Taco's 570 Gold Series. Designers prefer these valves for their quiet and dependable operation. Installers appreciate the open lever and twist-off head that makes installation and service easy. Available in 1/2" - 1 1/4" sweat connections.
$264.00 USD
SPECIFICATIONS
| Bady Type | Bronze | |
| Application | Zoning | |
| Position | Normally Closed | |
| Max Flow (GPM) | 4.5 | |
| Flow Range (GPM) | 1 to 4.5 GPM | |
| Amperage | 0.9 | |
| Max Pressure (PSI) | 150 | |
| Hertz | 60 | |
| Max Temp (F) | 240°F | |
| Height | 4-13/16'' | |
| Width(Inches) | 3-1/16'' |
| Size | 1/2'' | |
| End Switch | Yes | |
| Body Pattern | 2-Way | |
| Connection Type | Sweat | |
| Voltage | 24V | |
| Min Flow (GPM) | 1 | |
| Flow Capacity (Cv) | 4.2 | |
| Depth(Inches) | 2'' | |
| Wiring | 3 Wire Terminal Block | |
| Min Temp (F) | 40°F | |
| Temperature Range (F) | 40°F - 240°F |
