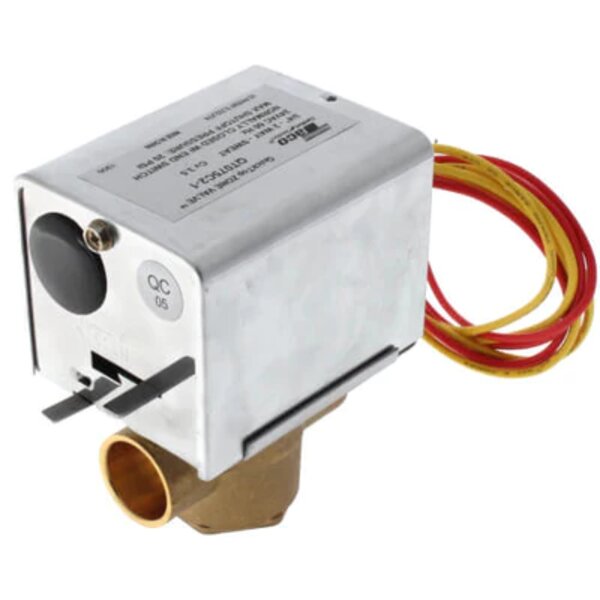

Taco QT075C2-1 3/4" QuickTop Zone Valve (Sweat)
Availability:
In-Stock
Taco® QuickTop Zone Valves provide a convenient way to create individual zones or equipment isolation in closed loop hydronic systems. Utilizing one pump with multiple zone valves, flow can be started or stopped through the system providing individual room or area comfort, control and energy savings. The QuickTop Zone Valve is offered with 1/2”, 3/4” or 1” sweat connections, and comes with Taco’s trusted quality & reliability.
Application
Taco® QuickTop Zone Valves provide on-off, normally closed control in closed hydronic systems. The valves can be used in a wide variety of heating & cooling applications. Use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Product Specifications
Application
Taco® QuickTop Zone Valves provide on-off, normally closed control in closed hydronic systems. The valves can be used in a wide variety of heating & cooling applications. Use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Product Specifications
- Static Pressure Rating - 300 PSI
- Close-off Pressure - 15 - 20 PSI
- Ambient Temperature - 32° - 125° F
- Fluid Temp. Range - 32° - 200° F
- Normally closed
- 5W, 7.2 VA
- Service - Water or Water/Glycol up to 50% Glycol, Closed Systems
$134.50 USD
SPECIFICATIONS
| Size | 3/4" | |
| Flow Capacity (Cv) | 3.5 | |
| Connection Type | Sweat | |
| Voltage | 24v | |
| Media | Water or Glycol up to 50% | |
| Amperage | 7.2 |
| End Switch | Yes | |
| Body Pattern | 2-Way | |
| Position | Normally Closed | |
| Static Pressure | 300 psi | |
| Wattage | 5 | |
| Temperature Range (F) | 32°F to 200°F |
