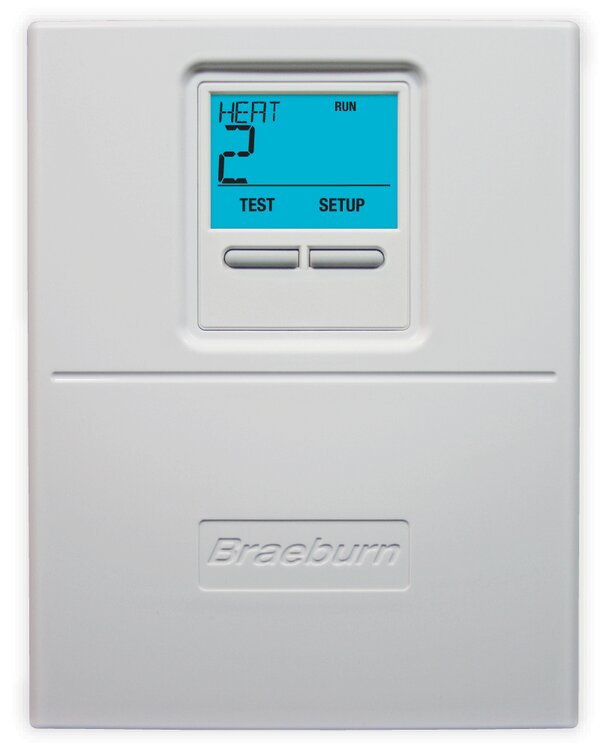

Braeburn 3-Zone Control Panel Model 140311 (1 Heat/1 Cool)
Braeburn 3-Zone Control Panel Model 140311 (1 Heat/1 Cool)
Availability:
In-Stock
Warranty: 5 Year
$132.23 USD
SKU:
BR140311
ID:
PH501-0055
PRODUCT INFO
Product Features:
- Controls up to 1 heating and 1 cooling stage
- Compatible with electric, gas and oil systems
- Can be used with virtually all conventional low-voltage thermostats and dampers from other manufacturers
- Large 5.5 sq. in. display shows system status
- LED’s show all calls at a glance
- Push-in terminals for easy wiring–no screwdriver needed
- Push button set-up without dip switches
- High/Low Limit protection with optional supply air sensor
Warranty: 5 years
SPECIFICATIONS
| Panel Power: | 6 VA maximum | |
| System Power: | 100 VA maximum, 50 VA maximum per zone | |
| Protection: | Electronic self resetting, current limiting on each zone | |
| Zone Damper Control: | Compatible with virtually all 24V powered and spring dampers | |
| Indicators: | LED’s for all thermostats, equipment and dampers, LCD display for configuration | |
| Configuration: | Single Stage Conventional equipment (1H / 1C) | |
| Terminals: | Panel Power: 24V, 24C Equipment: Rh, Rc, Y, G, G2, W, C Thermostats (3 each): R, Y, W, G, C Dampers (3 each): PO, C, PC Supply Air Inputs: SA1, SA2 |
| Power | 24 VAC | |
| Supply Air Sensor | Optional (Model 149156) | |
| Indicators | LED’s for all thermostats, equipment and dampers, LCD for configuration | |
| Thermostat | 1H / 1C Conventional | |
| Construction | PC Board in High Impact Housing | |
| Mounting | Wall or Return Air Plenum Mount | |
| Environmental | Storage -40˚ F to 167˚ F (-40˚ to 75˚ C) Operating -22˚ F to 167˚ F (-30˚ to 75˚ C) |
ACCESSORIES
Braeburn Static Pressure Controls are designed to control HVAC system bypass dampers. This complete kit comes with a deluxe plated control, relay, pressure pickup, and...
SKU:
BR149020
Vendor:
Braeburn
Type:
Zoning System Accessories
Availability:
In-Stock
$81.25 USD
Braeburn zoning transformers have 120 VAC input and 24 VAC output. UL listed and convenient mounting features for easy installation. Includes mounting plate, 40 VA,...
SKU:
BR149040
Vendor:
Braeburn
Type:
Zone Transformer
Availability:
In-Stock
$21.27 USD
Warranty: 1 Year
SKU:
BR149156
Vendor:
Braeburn
Type:
Zoning System Accessories
Availability:
In-Stock
$19.98 USD
