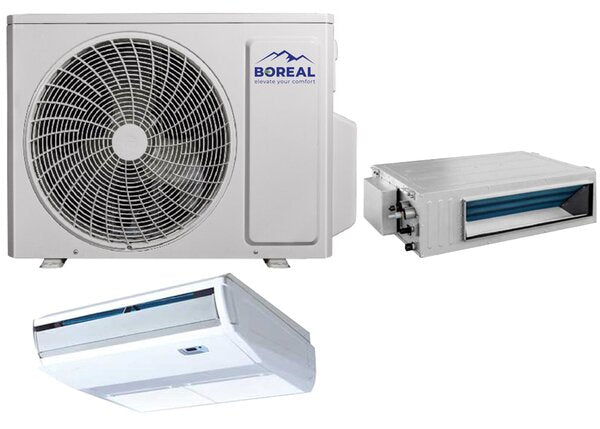

Boreal 36,000 BTU 21 SEER2 Dual Zone Universal Floor/Ceiling/Slim Duct Mini Split System (18k, 18k) 208-230V

Availability:
In-Stock

Rated Capacity: 36,000 BTU Cooling
Product Includes
(1) Boreal BRISSA - 36,000 BTU - Outdoor Condenser - Single Zone Only (MBRS36HPJ1OE)
(1) Boreal 17,000 BTU 19 SEER Mini-Split Universal Floor/Ceiling (BFLR18HPJ1FA
(1)  Boreal 18000 BTU 21 SEER Multi-Zone Slim Duct Heat Pump (BDUCT18HPJ1DA)
Wired Controller
Required, but NOT included: 1/4" x 3/8" (x2) Line sets
FREE SHIPPING

$3,759.20 USD

Title
Buy Now
SKU:
MBRS36HPJ1OE; BFLR18HPJ1FA; BDUCT18HPJ1DA
ID:
BRS100-0054; BRS100-0058; BRS100-0066

SPECIFICATIONS

General Information

Outdoor Condenser
MBRS36HPJ1OE
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h34000 (8871 - 35826)
Heating Capacity - Nominal Btu/h36000 (8871 - 44356)
SEER2 / EER221 / 12
HSPF2 / COP
10 / 3.6
Energy Star®
YES
Cooling Capacity (Min-Max) Btu/h34000 (8871 - 35826
Heating Capacity (Min-Max) Btu/h
36000 (8871 - 44356)
SEER2 / EER216 / 11
HSPF2 / COP
8 / 3.3
Energy Star®
NO
Cooling Capacity (Min - Max) Btu/h
34000 (8871 - 35826)
Heating Capacity (Min - Max) Btu/h
36000 (8871 - 44356)
SEER2 / EER2
18.5 / 11.5
HSPF2 / COP
9 / 3.5
Energy Star®
YES
Cooling Temperature Range °F-22 - 118
Heating Temperature Range °F-22 - 75
Refrigerant TypeR410A
Compressor Type
G-10 / 2 - STAGE INVERTER
Sound Pressure Level dB(A)
63
External Dimensions (W x H x D)  in
40-3/16 × 32-9/16 × 16-13/16
Package Dimension (W x H x D) in
43 × 34-7/8 × 19-5/8
Weight (Net / Gross) lbs172.0 / 187.4
Refrigerant Charge - R410A oz
130.5
Additional Charge oz/ft
0.2
Port Size (Liquid - Gas Port A (in)
1/4 - 3/8
Port Size (Liquid - Gas Port B (in)
1/4 - 3/8
Port Size (Liquid - Gas Port C (in)
1/4 - 3/8
Port Size (Liquid - Gas Port D (in)
1/4 - 3/8
Port Size (Liquid - Gas Port E (in)

Pre-Charge Length ft131
Pipe Length (Min - Max) ft
10 - 263
Pipe Length to furthest Indoor Unit ft
82
Max. Pipe Elevation ft
82
Power Supply
208-230V / 1Ph / 60Hz
Voltage Range (Min - Max) VAC187 - 253
Rated Current - Cooling A
23
Rated Current - Heating A
23
MCA A29
MOCP A
45
Main Power Wire Size AWG
Per Local Code
Interconnecting Wire Size AWG
14 / 4
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
General Information

Universal Floor/Ceiling
BFLR18HPJ1FA
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h17000
Heating Capacity - Nominal Btu/h17800
SEER2 / EER219 / 11.3
HSPF2 / COP
8.3 / 3.3
Energy Star®
NO
Air Flow (Min-Max) CFM
241 - 400
Sound Pressure Level (Min - Max) dB(A)
27 - 38
Dehumidification pt/hr
3.8
External Dimensions  (W x H x D) in
34-1/4 x 26-1/4 x 9-1/4
Package Dimension (W x H x D) in
40-1/2 x 30-1/4 x 11-1/4
Weight (Net/Gross) lbs
56.3 / 67.3
Line Set Sized by Indoor Unit (Liquid - Gas) in
1/4 - 1/2
Power Supply
208-230V / 1Ph /  60Hz (Powered by the Outdoor Unit)
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
Slim Duct
BDUCT18HPJ1DA
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h18000
Heating Capacity - Nominal Btu/h19000
SEER2 / EER220 / 12.7
HSPF2 / COP
8.3 / 3.7
Energy Star®
YES
Air Flow (Min-Max) CFM
288 / 589
External Static Pressure In W.c
0.8
Sound Pressure Level (Min - Max) dB(A)
26 - 39
Dehumidification pt/hr
3.8
External Dimensions  (W x H x D) in
44-1/2 x 11-7/8 x 29-3/4
Package Dimension (W x H x D) in
47-5/16 x 13-5/8 x 32
Weight (Net/Gross) lbs
93 / 107
Line Set Sized by Indoor Unit (Liquid - Gas) in
3/8 - 5/8
Power Supply
208-230V / 1Ph /  60Hz (Powered by the Outdoor Unit)
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
