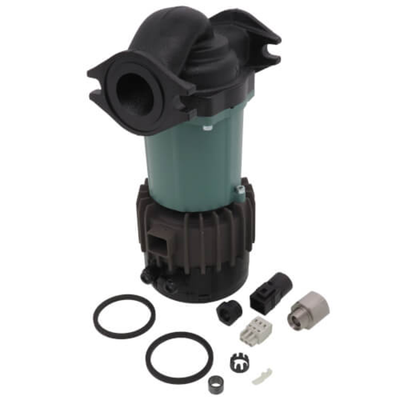

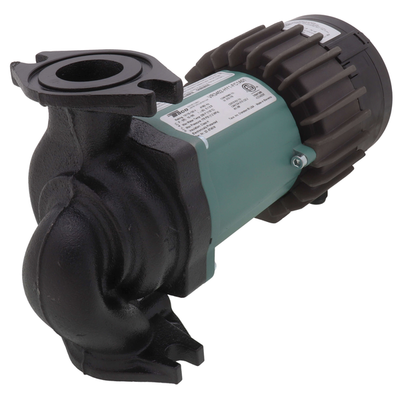

Taco VR3452-HY1-FC1A01 Viridian Self-Adjusting High Efficiency Wet Rotor Circulator with Communication Module, Less Flanges - Rotated
The Viridian VR3452 circulator is a self-adjusting, high-efficiency wet rotor circulator for chilled and hot water applications. All settings can be accomplished on the user-friendly interface. The ECM permanent magnet motor saves up to 85% of the electrical energy compared to conventional pumps.
Operating Modes:
- Auto mode (default)
- Proportional pressure control
- Constant pressure control
- Constant speed
- Night setback turndown
Features
- High-efficiency ECM motor uses up to 85% less electricity

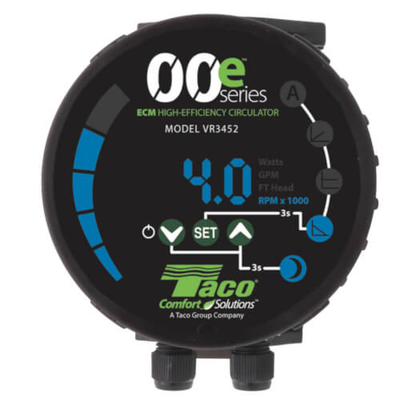

- LED displays watts, flow & RPM
- Compact size for easy handling and installation
- Plug & play simplicity
- Robust construction for long life
- Industry standard flange configuration and lay length
- Low noise operation
- Cataphoresis coated volute
- Communication module (Standard on -FC1A01 models)
$1,890.00 USD
SKU:
VR3452-HY1-FC1A01
ID:
TC200-2S9-0023
Categories:
SPECIFICATIONS
| Body Type | Cast Iron | |
| Voltage | 115V | |
| Max Pressure (PSI) | 145 | |
| Max Head (Ft) | 34 | |
| Horse Power | 1/100 to 1/4 | |
| Phase | 1 |
| Amperage | 2.5 | |
| Application | Commercial | |
| Type | Pump | |
| Max Flow (GPM) | 52 | |
| Speeds | Variable | |
| RPM | 1100 - 4400 |
