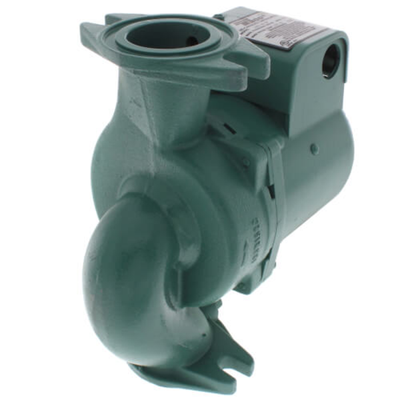

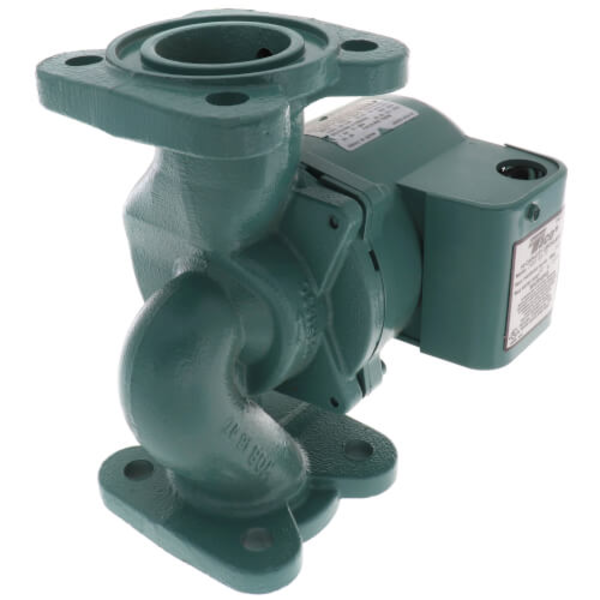

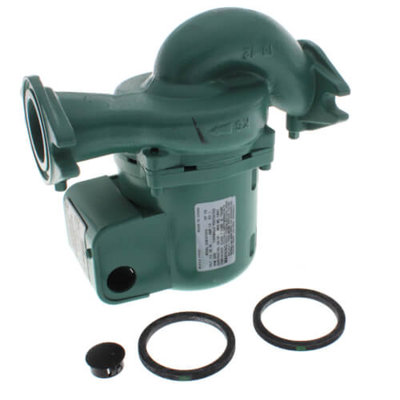

Taco 2400-60-3P Cast Iron Series Circulator Pump, 1/6 HP
Taco 2400-60-3P high-capacity cast-iron circulator is a 1/6 HP pump for medium- to high-flow hydronic heating, chilled-water, recirculation, and related closed-loop applications.
Product highlights
- 1/6 HP motor
- Cast-iron construction
- Close-coupled maintenance-free motor
- Permanently lubricated sealed bearings
- 1/2 in stainless-steel shaft
- Carbon/silicon-carbide mechanical seal
- Universal flange-to-flange dimensions
- Dual pressure taps
Ordering details
- Brand: Taco
- Model / SKU: 2400-60-3P
- Product type: Circulator Pump
Fit note: Verify required flow/head, voltage, flange size, fluid compatibility, system pressure/temperature, and application before ordering.
$1,743.00 USD
SKU:
2400-60-3P
ID:
TC200-2S9-0010
Categories:
SPECIFICATIONS
| Body Type | Cast Iron | |
| Voltage | 115V | |
| Max Pressure (PSI) | 150 | |
| Horse Power | 1/6 | |
| Max Head (Ft) | 15 | |
| Phase | 1 |
| Temperature Range | 40°F - 225°F | |
| Amperage | 1.9 | |
| Type | Pump | |
| Max Flow (GPM) | 54 | |
| Hertz | 60 | |
| RPM | 3450 |
