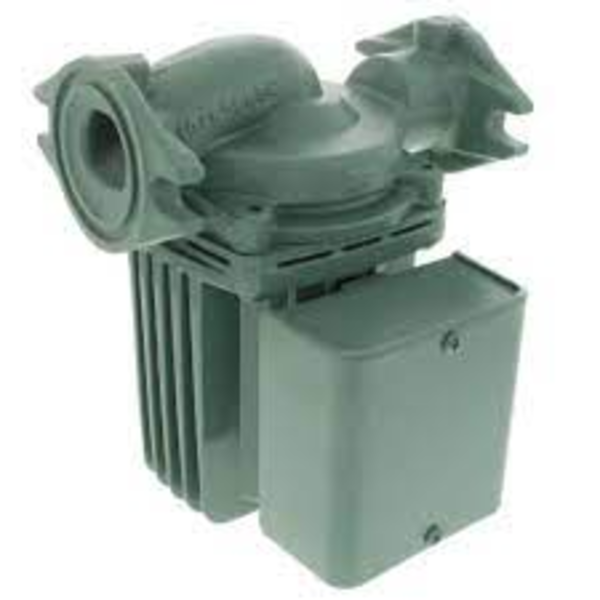

Taco 007-BF5-J Bronze Circulator with Cast Iron Casing, 1/25 HP (115V)
Taco 007-BF5-J bronze circulator is a compact cartridge-style circulator for hydronic and water-circulation applications where a 115V, flanged pump is required.
Product highlights
- 1/25 HP motor
- 115V
- Bronze construction with cast-iron casing
- Replaceable cartridge design
- Direct drive and self-lubricating
- No mechanical seal
- Universal flange-to-flange dimensions
- Up to 23 GPM maximum flow
- 125 PSI maximum working pressure
Ordering details
- Brand: Taco
- Model / SKU: 007-BF5-J
- Product type: Circulator Pump
Fit note: Verify voltage, flange size, required flow/head, fluid compatibility, and system temperature before ordering.
$399.00 USD
SKU:
007-BF5-J
ID:
TC200-2S9-0305
Categories:
SPECIFICATIONS
| Body Type | Bronze | |
| Application | Heating | |
| Voltage | 115V | |
| Max Pressure (PSI) | 125 | |
| Horse Power | 1/25 | |
| Max Head (Ft) | 10 | |
| Phase | 1 | |
| Temperature Range (F) | 40°F - 230°F | |
| Connection Type | Flanged x Flanged |
| Flow Range | 0-23 | |
| Amperage | 0.76 | |
| Type | Pump | |
| Max Flow (GPM) | 23 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Head Range (Ft) | 0-10 | |
| Connection Size | 3/4'' 1-1/2'' 1'' 1-1/4'' |
