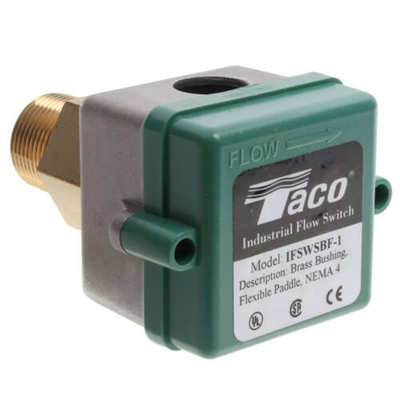

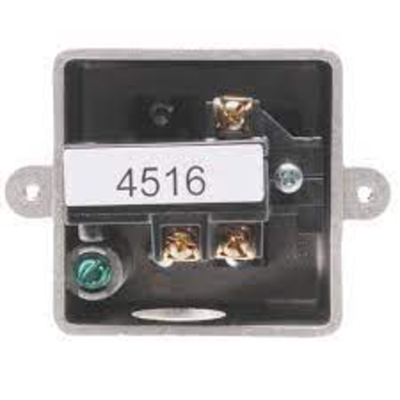

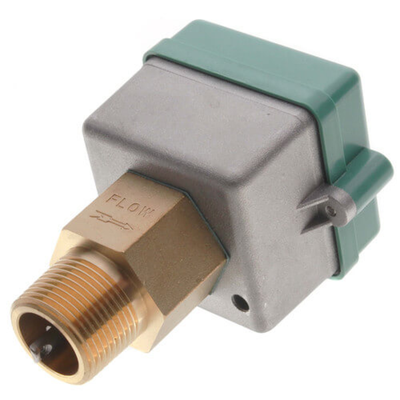

Taco IFSWSBF-1 Brass Flow Switch w/ Flexible Paddles (NEMA4, Small Turning Radius)
The Taco Industrial Flow Switch (IFS) starts or stops electronically operated equipment when a flow or no flow condition occurs. The IFS can be used in 1" to 8"liquid flow lines, carrying water or any nonhazardous fluid not harmful to brass, stainless steel or EPDM. It is used in a wide variety of applications including heating systems, domestic water boosters, process work, water systems, chillers and on low mass boilers.
Features:
Features:
- 3 Year Warranty
- EPDM Seal Superior to Competitor's Mechanical Bellows
- Little Mechanical Wear or Fatigue
- Greater Flow Sensitivity and Wider Adjustment Range
- Higher Pressures, 250 PSI Standard
- 250°F Temperature Rating
- Stainless Steel Paddles & Trip Rods
- NEMA 1 and NEMA 4 Models
- Single or Double Switch Models
- High Current Models Available
- For Use on 1" to 8" Diameter Pipe
- UL, CSA, CE Approved
$350.50 USD
SKU:
IFSWSBF-1
ID:
TC200-2S9-0294
Categories:
SPECIFICATIONS
| Body Type | Brass | |
| Paddles | Flaxible | |
| Type | General Purpose | |
| Switch | SPDT | |
| Size | 1'' | |
| Application | Liquid Flow |
