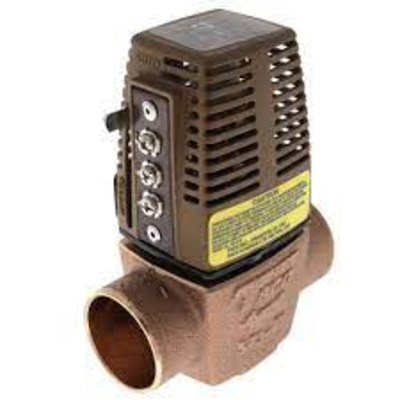

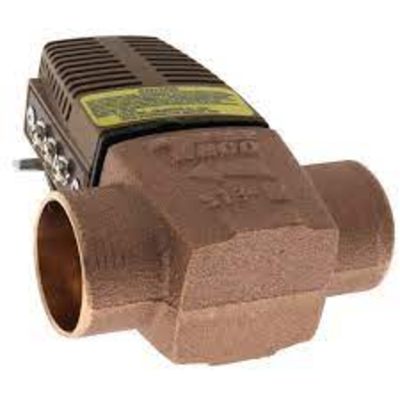

Taco 573-2 1-1/4"Sweat Zone Valve
When you want the industry standard for hydronic heating applications, choose Taco's 570 Gold Series. Designers prefer these valves for their quiet and dependable operation. Installers appreciate the open lever and twist-off head that makes installation and service easy. Available in 1/2" - 1 1/4" sweat connections.
$332.00 USD
SPECIFICATIONS
| Body Type | Bronze | |
| Application | Zoning | |
| Position | Normalli Closed | |
| Max Flow (GPM) | 16 | |
| Flow Capacity (Cv) | 7.2 | |
| Connection Type | Sweat | |
| Body Pattern | 2-way | |
| End Switch | Yes | |
| Ampeage | 0.9 | |
| Max Pressure (PSI) | 125 | |
| Hertz | 60 |
| Size | 1-1/4'' | |
| Min Flow (GPM) | 10 | |
| Flow Range (GPM) | 10 to 16 | |
| Voltage | 24v | |
| Width | 3-7/8'' | |
| Height | 4-13/16'' | |
| Depths (Inches) | 2'' | |
| Wiring | 3 Wire Terminal Block | |
| Min Temp (F) | 240°F | |
| Max Temp (F) | 40°F | |
| Temperature Range (F) | 40°F - 240°F |
