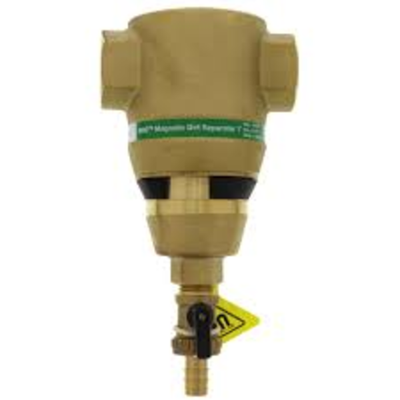

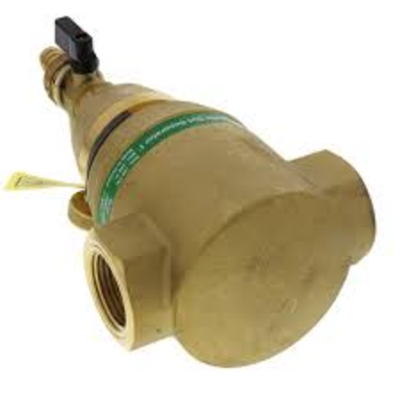

Taco 49MD-100T-2 1" Brass Series Magnetic Dirt Separator (Threaded)
Taco’s 4900 Series™ of magnetic dirt separators increase system life and efficiency by removing ferrous material and other harmful, loose particles from closed loop hydronic heating systems. A powerful, service-free magnetic ring and convenient blow down valve are included for quick and easy system maintenance. Available with Sweat or NPT connections in sizes ranging from 3/4” – 2”.
Product Specifications
- Housing: Brass
- Max. Operating Pressure: 150 psi
- Max. Operating Temperature: 240°F
- Min. Operating Temperature: 35°F
- Max. Velocity: 5 feet/sec
- Water or Water/Glycol up to 50% Glycol, Closed Systems
$205.00 USD
SPECIFICATIONS
| Bade Type | Brass | |
| Applicaton | Haeting | |
| Size | 1'' | |
| Connection Type | FNPT x FNPT | |
| Connection Size | Union Sweat |
| Connection Method | Threaded | |
| Max Pressure (PSI) | 150 | |
| Max Temp (F) | 240°F | |
| Type | Magnetic | |
| Flov Capacity (Cv) | 17 |
