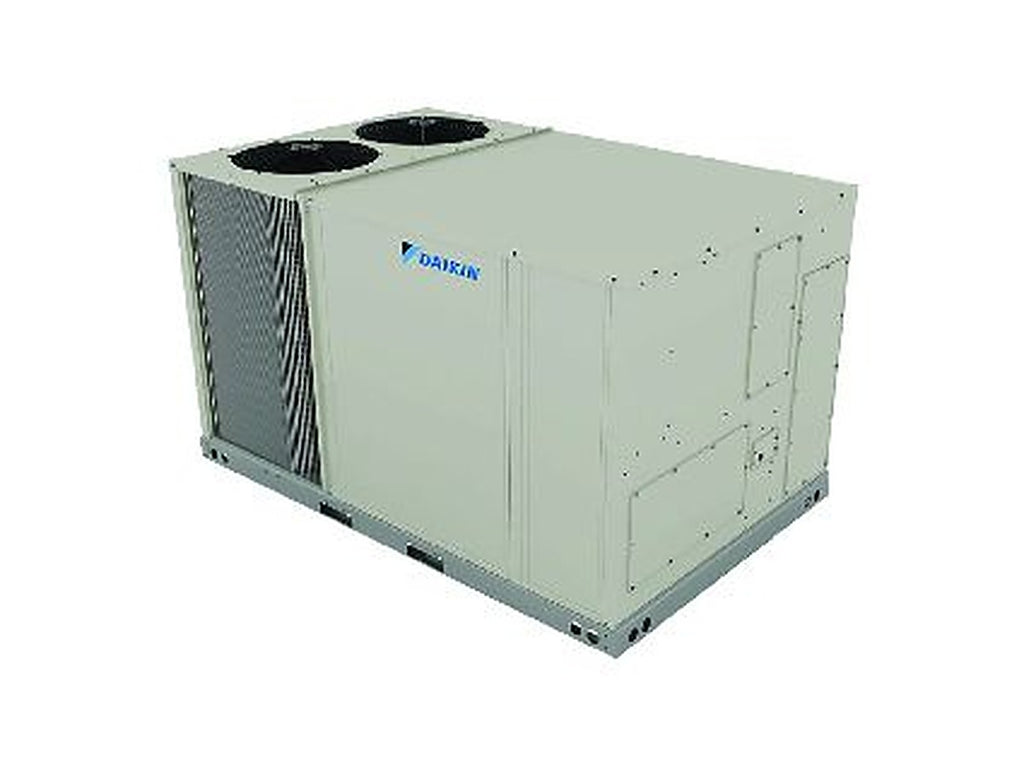

Daikin 7-1/2 Ton Cooling; 168,000 BTU Heating - Packaged Furnace + Heat Pump Unit; 12.7 SEER; 80% AFUE
- SEER: 12.7; EER: 11.0;
- Nom. Tons: 7-1/2; BtuH Cooling: 86,000; BtuH Heating Input: 210,000
- BtuH Heating Output: 168,000
- Volts: 208/230V; Phase: Three;
- Motor Type: 2-Speed Belt Drive; Nom. CFM: 3,000
- Min. Circuit Amps: 39.6
- Refrigerant: R410A
- Width: 93-3/4"; Height: 54-9/10"; Depth: 60-3/8"
Features and Benefits
Daikin Packaged units are designed with an easier and faster installation in mind for both new construction and retrofit. Our packaged rooftop units are built to be a direct replacement for most rooftop units on the field without the need of a curb adapter, to be able to replace the unit in a shorter time and at a lower expense.
Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance.
High performance, low noise scroll compressors to match the required total load for efficient part load control.
Indoor fan motors are belt drive as standard to provide easy in the field belt and pulley adjustment for airflow control.
All units use large face area outdoor coils. These coils are constructed with seamless copper tubes, mechanically bonded into aluminum plate-type fins with full drawn collars to completely cover the tubes for high operating efficiencies.
Controls and Wiring
Packaged rooftop units come equipped with a well-organized, large, easy to use, weather proof internal control box with easy access, for a better user experience.
Unit provides a draw-through filter section as standard for better air quality and longer lasting component maintenance.
Wide range of natural gas selections effectively handle most comfort heating demand from morning warm-up control to full heat, all available with Daikin’s Wrinkle Bend heat exchanger technology.
ETL certified heating modules provide a custom match to specific design requirement.
Units are completely wired and tested at the factory to provide faster commissioning and start-up.
|Cooling Capacity||86,000 BTU|
|Indoor Nominal CFM||3,000 CFM|
|Heating Output||168,000 BTU|
|Motor Type||2-Speed Belt Drive|
|Product Height||54.90 Inches|
|Product Width||60.38 Inches|
|Product Depth||93.75 Inches|
|Product Weight||1,095 Pounds|
|Shipping Weight||1,175 Pounds|
