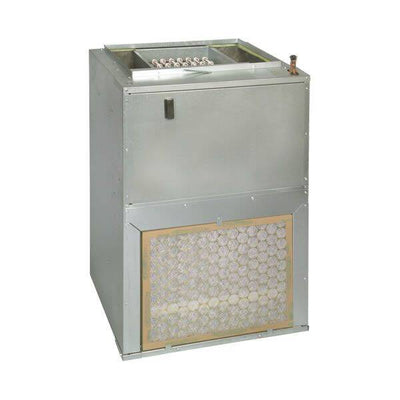

Goodman 1.5 Ton Air Handler, Wall-Mount; w/PSC Motor; w/3 kW Heat
Nom. Tons: 1.5; Nom. kW: 3.0; Volts: 208/230; Nom. CFM: 545; CFM @ 0.5" ESP: 545; Min. Circuit Amps: 17.3; Amps @ 240V: 15.1; Max. Fuse Size: 20; Liquid Conn.: 3/8"; Suction Fitting: 5/8"; Width: 20-3/16"; Height: 36"; Depth: 16-1/8"; Wt. Lbs.: 84; Motor Type: PSC; Air Handler Type: Single Piece; Configuration: Wall Mount;
SKU:
AWUF180316
ID:
HE180-2005
Categories:
PRODUCT INFO
Product Features
- For use with refrigerants R410A and R22
- Multi-speed PSC for AWUF18-24-30-36
- Check flowrater for cooling only and heat pump application
- Circuit breaker disconnect
- Thermoplastic drain pan with primary/secondary drain connections
- Sequence controlled and rust resistant heating elements
- Aluminum tubing coils
- 1.5 & 2 Ton units: front and bottom return
- 2.5 & 3 Ton units: front return only
- Built-in filter rack with filter included
- Wall hanging bracket included
- 208/240V
SPECIFICATIONS
| Nominal Ratings | |
| Cooling (BTU/h) | 18,000 |
| Electric Heat (kW) | 3 |
| Blower | |
| Diameter | 9 |
| Width | 6 |
| Coil Connections | |
| Liquid | 3/8" |
| Suction | 5/8" |
| Coil Drain Connection (FPT) | 3/4" |
| Blower Motor | |
| Full Load Amps (FLA) | 1.3 |
| Horsepower (HP | 1/5 |
| Ship Weight (lbs) | 84 |
