PRODUCT INFO

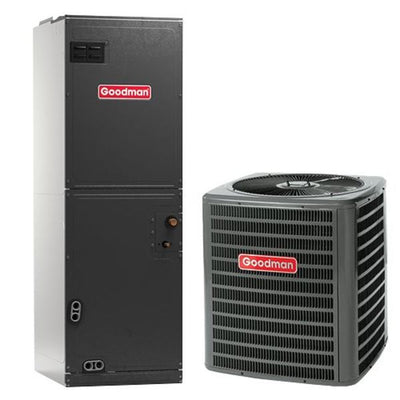

The Goodman GSZ14 GSZ140301 up to 15 SEER Heat Pump Air Conditioner Condenser is considered as the art of precision
- Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.
- Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.
- Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements.
- Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
- Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.
Goodman ASPT ASPT39C14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor are considered as the art of precision
- All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
- Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
- Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Configuration | Multi-Position |
Performance | |
Capacity | 2.5 Tons |
Cooling Capacity | 27800 BTU |
Nominal Cooling Capacity | 30000 BTU |
SEER | 14.5 |
EER | 12.0 |
HSPF | 8.5 |
Maximum Air Flow | 1000 CFM |
Dimensions | |
Product Weight | 274 Pounds |
Shipping Weight | 290 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
AHRI Reference Number | 201817145 |
Country of origin | United States |
