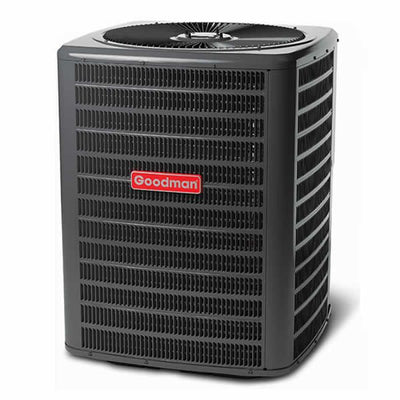

Goodman 2.5 Ton Air Conditioner Condenser; 14 SEER; Single-Stage; W/R410A Refrigerant

Availability:
Out-Stock
SEER: 14; EER: 12.2; Nom. Tons: 2.5; BtuH Cooling: 30,000; Volts: 208/230; Phase: Single; Motor Type: ECM; Min. Circuit Amps: 17.1; Max. Fuse Size: 25; Liquid Conn.: 3/8"; Suction Fitting: 3/4"; Refrigerant: R410A; Width: 29"; Height: 32-1/2"; Depth: 29"; Wt. Lbs.: 162

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Standard Features

  • Energy-efficient compressor
  • Single-speed condenser fan motor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Heavy-gauge galvanized-steel cabinet with a louvered sound control top
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2017 Florida
  • Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

Capacities
Nominal Cooling (BTU/h)30,000
SEER / EER14 /12.2
Decibels72



Compressor
RLA12.8
LRA67.8
TypeScroll



Condenser Fan Motor
Horsepower1/6
FLA0.95



Refrigeration System
Refrigerant Line Size
     Liquid Line Size (O.D.)3/8"
     Suction Line Size (O.D.)3/4"
Refrigerant Connection Size
     Liquid Valve Size (O.D.)3/8"
     Suction Valve Size (O.D.)3/4"
Valve TypeSweat
Refrigerant Charge90
Included piston:0.063



Ship Weight (lbs)180
