Goodman 2.5 Ton Cooling 16 SEER; 80k BTU Heating; 80% AFUE Gas Electric Air Conditioner System

Availability:
Out-Stock

Product Includes 3 items:
(1) Goodman 80% AFUE 80,000 BTU 2 Stage Upflow/Horizontal Variable Speed Gas Furnace (GMVC80805DX)
(1) Goodman 2.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160301)
(1) Goodman 3 to 3.5 Ton 24.5 in. Wide Air Conditioner Cased Coil (CAPT3743D4)
Non-Bleed Air Conditioner TXV Kit is sold separately!


For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

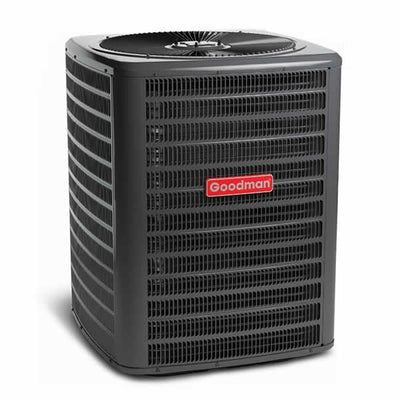

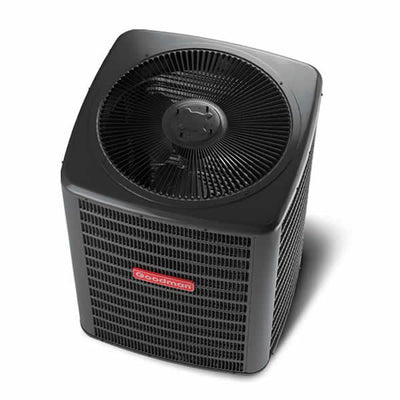

Goodman GSX160301 air conditioner condenser

Energy-Efficient Scroll Compressor- Inside of the Goodman GSX160301 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 16 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX160301 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.

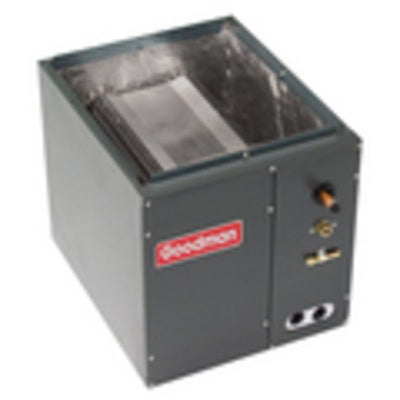

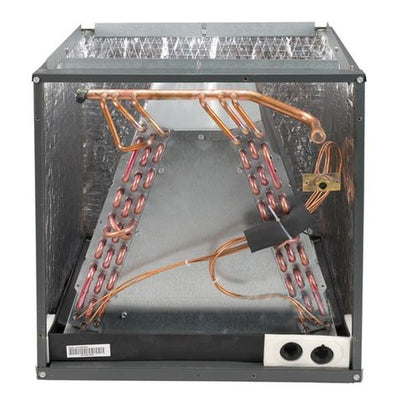

 Goodman CAPT3743D4 Air Conditioner Evaporator Coil
The Goodman CAPT3743D4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPT3743D4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.
Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

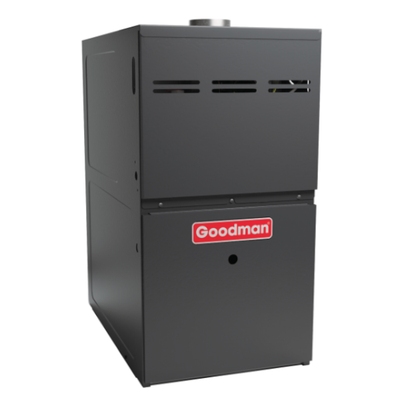

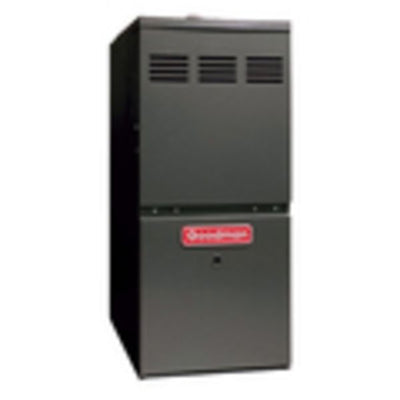

Goodman GMVC80805DX Gas Furnace Heater

Aluminized Steel Tubular Primary Heat Exchanger - Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.
Two-Stage Gas Valve - The Goodman GMVC80 80% AFUE Two Stage, Variable Speed, Upflow/Horizontal, ComfortNet Compatible Series GMVC80805DX reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.
ComfortNet Communicating System Compatible - Continuously monitors system performance and allows remote control of system as an option.
Self-calibrating modulating gas valve - Auto-configures for each installation.
Durable Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light.
Quiet, Two-Stage, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.
Efficient and Quiet Variable-Speed ECM Circulator Motor - Provides quiet system startup and shutdown with highly efficient performance.
Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GMVC80805DX furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GMVC80 80% AFUE Two Stage, Variable Speed, Upflow/Horizontal ComfortNet Compatible Series GMVC80805DX gas furnace.
Thermally-Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

SPECIFICATIONS

General Information
Operating Mode
Heating and Cooling
Configuration
 Upflow
Performance
AFUE80 %
Capacity2.5 Tons
Cooling Capacity28600 BTU
Nominal Cooling Capacity
30000
Heating BTU
80000
SEER16.0
EER13.0
Maximum Air Flow1000 CFM
Dimensions
Product Weight242 Pounds
Shipping Weight353 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number9923520


Goodman GSX160361 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)34,800
SEER / EER16/12.2
Decibels71.5
Compressor
RLA14.1
LRA77
Condenser Fan Motor
Horsepower1/6
FLA0.95
Goodman GMVC80805DX  Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVC80
Fuel TypeNatural Gas
Vent TypeChimney Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051567436
Performance
AFUE 80 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output64000 BTU
Low Fire Input56000 BTU
Low Fire Output44800BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo



Goodman CAPT3743D4 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPT
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541061
Performance
Capacity4 - 5 Tons
Cooling BTU42000
Nominal Minimum Cooling Capacity36000 BTU
