Goodman 2 Ton 16 SEER Air Conditioner Split System (Cooling only)

Availability:
Out-Stock

Product Includes 2 items:
(1) Goodman 2 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160241);
(1) Goodman 2.5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT33C14)

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

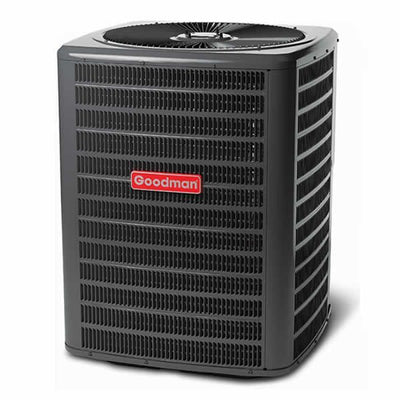

The Goodman GSX160241 Air Conditioner Condenser

The compressor in the Goodman GSX160241 Air Conditioner Condenser is covered by a 10-Year Compressor Replacement Limited Warranty. If the compressor fails within 10 years of installation, a new one will be provided to the original purchaser of the central air conditioning system as long as they live in the same single-family residence. All functional parts are covered by a 10-Year Parts Limited Warranty.

Energy-Efficient Scroll Compressor- Inside of the Goodman GSX160241 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 16 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX160241 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

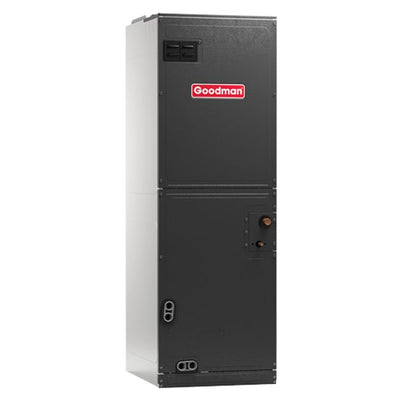

ASPT33C14 Air Conditioner Air Handler

The Goodman ASPT33C14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT33C14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT33C14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

SPECIFICATIONS

General Information
Operating ModeCooling
ConfigurationMulti-Position
Compressor StagesSingle
DOE Regional Compliance North and Southeast
Installation AvailableYes



Performance
Capacity2.0 Tons
Cooling Capacity23600 BTU
Nominal Cooling Capacity24000 BTU
SEER16.0
EER 13.0
Maximum Air Flow820 CFM



Dimensions
Product Weight260 Pounds
Shipping Weight (total)278 Pounds



Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number201830189
Country of OriginUnited States
