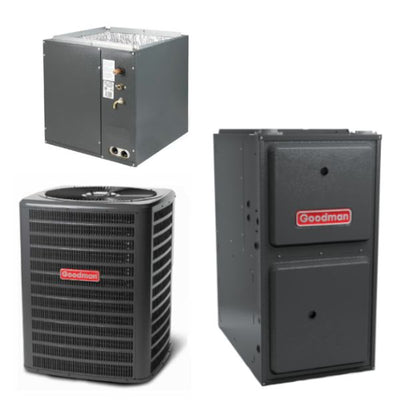

Goodman 2 Ton Cooling 14.5 SEER; 60k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
Out-Stock

Product Includes 3 items:
(1) Goodman 96% AFUE 60,000 BTU 2 Stage Upflow/Horizontal Gas Furnace Heater (GMEC960603BN);
(1) Goodman 2 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140251);
(1) Goodman 3 Ton 17.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3636B6)
Non-Bleed Air Conditioner TXV Kit is sold separately!

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

  Overview for Goodman CAPF3636B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil

The Goodman CAPF3636B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF3636B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

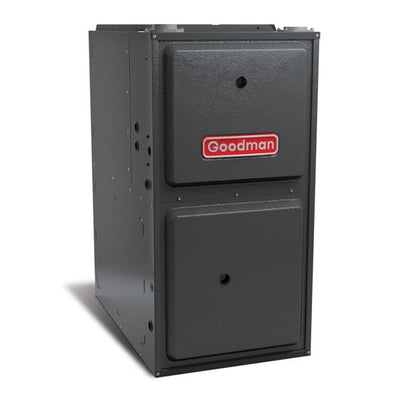

  Overview for Goodman GMEC960603BN Gas Furnace Heater

The GMEC96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GMEC960603BN utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GMEC96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GMEC96.

Advanced Heat Exchanger Design
The GMEC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger
This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.

Quiet Comfort
The blower, motor, and gas valve of the GMEC960603BN were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.

Venting Options
The GMEC960603BN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.

Secure Cabinet
All GMEC96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.

Easy Integration
The GMEC960603BN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

  Overview for Goodman GSX140251 Air Conditioner Condenser

You can count on The Goodman GSX140251 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners

  • Energy-efficient compressor
  • Single-speed condenser fan motor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed
  • Heavy-gauge galvanized-steel cabinet with a louvered sound control top
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2017 Florida
  • Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
Coil Width17.5 Inches
ConfigurationUpflow
DOE Regional ComplianceNationwide (Except CA)
Performance
AFUE96 %
Capacity2 Tons
Cooling Capacity23400 BTU
Heating BTU60000
SEER14.5
EER12.0
Maximum Air Flow775 CFM
Dimensions
Product Weight295 Pounds
Shipping Weight312 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number8711431



  Goodman GSX140251 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)24,000
SEER / EER14/12.2
Decibels71
Compressor
RLA13.5
LRA58.3
Type
Scroll
Condenser Fan Motor
Horsepower1/8
FLA0.7
Goodman GMEC960603BN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMEC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051578128
Performance
AFUE 96 %
Heating BTU60000
High Fire Input60000 BTU
High Fire Output57600 BTU
Low Fire Input42000 BTU
Low Fire Output40320 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo
Low NOx Emissions
Yes



Goodman CAPF3636B6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051540927
Performance
Capacity3 Tons
Cooling BTU36000
