Goodman 3 Ton Cooling 15 SEER; 80k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
Out-Stock

Product Includes 4 items:
(1) Goodman 3 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160361)
1) Goodman 96% AFUE 80,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVC960804CN)
(1) Goodman 3 to 3.5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3743C6)
(1) Goodman 3 to 3.5 Ton Air Conditioner TXV Kit R410A Refrigerant (TXV-42)
Non-Bleed Air Conditioner TXV Kit is sold separately!

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Goodman GSX160361 Air Conditioner Condenser

Energy-Efficient Scroll Compressor- Inside of the Goodman GSX160361 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 15 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX160361 conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.

 Goodman CAPF3743C6 Air Conditioner Evaporator Coil

The Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.
Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

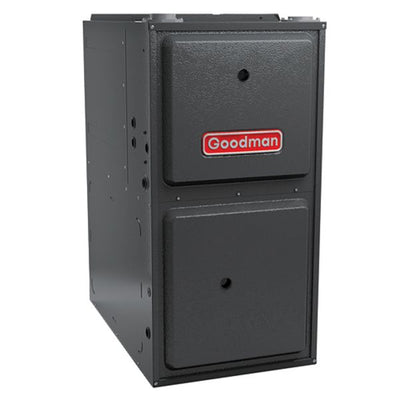

Goodman GMVC960804CN Gas Furnace Heater

Aluminized Steel Tubular Primary Heat Exchanger - Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.
Two Stage Gas Valve - The Goodman GMVC96 96% AFUE Two Stage, Variable-Speed,  Upflow/Horizontal, ComfortNet Compatible Series GMVC960804CN energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.
ComfortNet Communicating System Compatible - Continuously monitors system performance and allows remote control of system as an option.
Self-calibrating modulating gas valve - Auto-configures for each installation.
Durable Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light.
Quiet, Two Stage, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.
Efficient and Quiet Variable-Speed ECM Circulator Motor - Provides quiet system startup and shutdown with highly efficient performance.
Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GMVC960804CN furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GMVC96 96% AFUE Two Stage, Variable-Speed, Upflow/Horizontal, ComfortNet Compatible Series GMVC960804CN gas furnace.
Thermally-Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

Goodman TXV-42 Air Conditioner TXV Valve for R410A Refrigerant

The Goodman Goodman TXV-42 Air Conditioner TXV or thermal expansion valve (often abbreviated as TEV, TXV or TX valve) is a component in refrigeration and air conditioning systems that controls the amount of refrigerant flow into the evaporator thereby controlling the superheating at the outlet of the evaporator. Available in R410A Refrigerant to meet your installation requirements.
This Goodman TXV-42 Air Conditioner thermostatic expansion valve or TXV is a precision device. It is designed to regulate the rate at which liquid refrigerant flows into the evaporator from the condenser. This controlled flow is necessary to maximize the efficiency of the evaporator while preventing excess liquid refrigerant from returning to the compressor.

SPECIFICATIONS

General Information
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Blower Motor
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Upflow
DOE Regional Compliance
Nationwide
Performance
AFUE96%
Capacity3.0 Tons
Cooling Capacity
34000 BTU
Nominal Cooling Capacity
36000 BTU
Heating BTU
80000
SEER15.0
EER12.5
Maximum Air Flow
980 CFM
Dimensions
Product Weight
413 Pounds
Shipping Weight431 Pounds
Certifications
AHRI CertifiedYes
ETL Listed
Yes
AHRI Reference Number7355194


Goodman GSX160361 Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)34,800
SEER / EER16/12.2
Decibels71.5
Compressor
RLA14.1
LRA77
Condenser Fan Motor
Horsepower1/6
FLA0.95


Goodman TXV-42 Air Conditioner TXV Kit
General Information
TypeTXV Kit
Product LineTXV
Refrigerant TypeR-410A
UPC193031106138
Performance
Product Weight
1 Pound
Shipping Weight
2 Pounds
Goodman GMVC960804CN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGCVC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation Available
Yes
UPC663051560987
Performance
AFUE 96%
Heating BTU80000
High Fire Input
80000 BTU
High Fire Output
76800 BTU
Low Fire Input56000 BTU
Low Fire Output
53760 BTU
Maximum Air Flow1600 CFM
Ultra Low NOx EmissionsNo
Low NOx Emissions
Yes



Goodman CAPF3743C6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051540972
Performance
Capacity3 - 3.5 Tons
Cooling BTU42000
Nominal Minimum Cooling Capacity
36000 BTU
