Goodman 4 Ton Cooling 14.5 SEER; 100k BTU Heating; 96% AFUE Gas Electric Air Conditioner System
Product Includes 3 items:
(1) Goodman 96% AFUE 100,000 BTU Variable Speed Downflow/Horizontal Gas Furnace (GCVC961005CN);
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPT4961C4)
Non-Bleed Air Conditioner TXV Kit is sold separately!
Goodman GCVC961005CN Gas Furnace Heater
Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GCVC96 furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a two-stage furnace. It is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GCVC961005CN was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GCVC96.
- Low continuous fan speed
- Color-coded low-voltage terminals
- Self-diagnostic control board
- Quiet two-speed induced draft blower
- Durable Silicon Nitride igniter
- Two-stage gas valve provides quiet, economical heating
- Stainless-steel secondary heat exchanger
- Heavy-duty, aluminized-steel tubular heat exchanger
- Energy-efficient, multi-speed ECM blower motor

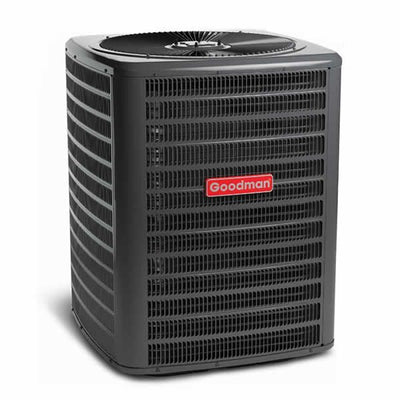

Goodman GSX140481 Air Conditioner Condenser
You can count on The Goodman GSX140481 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.
The Goodman CAPT4961C4 Air Conditioner Evaporator Cased Coil
The CAPT4961C4 is a cased A coil for use in upflow or downflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CAPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.
Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operationa
R-22 refrigerant is no longer in production, but many older systems still use it. The CAPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
|Operating Mode||Heating and Cooling|
|Blower Motor||ECM Variable-Speed|
|Coil Width||21 Inches|
|DOE Regional Compliance||Nationwide|
|Cooling Capacity||45500 BTU|
|Nominal Cooling Capacity||48000 BTU|
|Maximum Air Flow||1450 CFM|
|Product Weight||438 Pounds|
|Shipping Weight||460 Pounds|
|AHRI Reference Number||7517373|
|Goodman GSX140481 Air Conditioner Condenser|
|Nominal Cooling (BTU/h)||48,000|
|SEER / EER||14/11.7|
|Condenser Fan Motor|
|Goodman GCVC961005CN Gas Furnace Heater|
|Fuel Type||Natural Gas|
|Vent Type||Direct Vent|
|Blower Motor||ECM Variable-Speed|
|Gas Conversion Kit||Available|
|High Fire Input||100000 BTU|
|High Fire Output||96000 BTU|
|Low Fire Input||70000 BTU|
|Low Fire Output||67200 BTU|
|Maximum Air Flow||2000 CFM|
|Ultra Low NOx Emissions||No|
|Goodman CAPT4961C4 Air Conditioner Evaporator Coil|
|Capacity||4 - 5 Tons|
|Nominal Minimum Cooling Capacity||48000 BTU|
