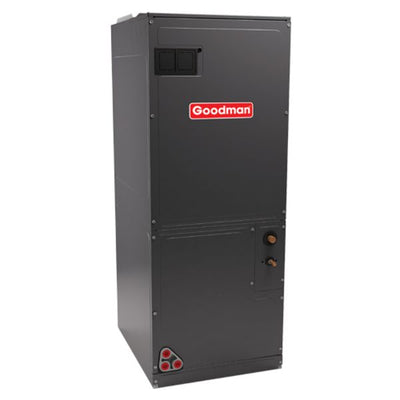

Goodman 5 Ton Air Handler Multi-Position, W/Variable-Speed ECM Motor

Nom. Tons: 5; Volts: 208/240; Nom. CFM: 2,000; CFM @ 0.5" ESP: 2,015; CFM High @ 0.3 ESP: 2,025; Min. Circuit Amps: 8.6; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 24-1/2"; Height: 58"; Depth: 21"; Wt. Lbs.: 167; Motor Type: ECM; Air Handler Type: Single Piece; Configuration: Multi-Position

For pricing and to purchase this product:

Please register, login, or contact us for a quote request


Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • All-aluminum evaporator coil
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • Field Installed 3 kW – 25 kW electric heater kits available


General Information
Product LineAVPTC
Refrigerant TypeR-410A
Blower MotorVariable Speed
Motor TypeECM
Configuration Multi-Position
Electric HeatAvailable
Installation AvailableNo


Capacity5 Tons
Nominal Cooling Capacity60000 BTU
Maximum Air Flow2025 CFM
Minimum Air Flow1210 CFM


Product Height58 Inches
Product Width24.5 Inches
Product Depth21 Inches
Shipping Weight167 Pounds
Liquid Valve Connection Size3/8 Inch
Suction Valve Connection Size7/8 Inch


ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
