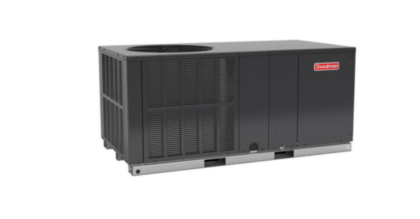

Goodman 5 Ton Heat Pump Package 13.4 SEER2, Two Stage, Horizontal, GPHH36031
Product Overview
With its quiet horizontal discharge and ready-to-install, factory pre-charged refrigerant system, the Goodman GPHH36031 packaged heat pump is an affordable all-in-one heating and cooling solution. Designed for reliable performance at a basic efficiency level, it delivers dependable comfort and long-lasting operation backed by the Goodman name.
Quick Facts
-
Suitable for larger homes in average climates
-
5 Ton packaged heat pump
-
13.4 SEER2 efficiency
-
Quiet horizontal discharge
-
Factory charged and ready to install
-
Low sound output
$5,715.00 USD
SKU:
GPHH36031
ID:
HE101-2135
Categories:
PRODUCT INFO
5 Ton
The Goodman GPHH36031 is rated at 5 tons, making it a strong option for larger homes in many climates. Please note that heating operation typically cuts out around 30°F, so for temperatures below that, a field-installed backup electric heat kit is recommended (sold separately).
13.4 SEER2
With a 13.4 SEER2 efficiency rating, the GPHH36031 meets today’s standard efficiency requirements and is installable in all mainland U.S. states. For higher energy savings, a 16 SEER2 system can be approximately 12% more efficient.
Warranty
Goodman offers a 10-year parts warranty when the unit is installed according to local codes and registered online through the manufacturer.
Durability & Reliability
The GPHH36031 is built for long-term dependability with a heavy-gauge galvanized-steel cabinet and enhanced coil protection. The fully enclosed, permanently lubricated fan motor supports long service life and reduces maintenance needs.
Installation & Maintenance
All Goodman packaged units are factory charged and tested, helping reduce installation time and eliminating the need for additional refrigerant in most installs. The GPHH36031 is designed for a wide range of non-rooftop packaged unit applications, including mobile homes, residential installs, warehouses, and other spaces where separate indoor equipment may not be ideal. A fully insulated blower compartment with convenient access panels helps make service and maintenance easier.
Comfort in Mind
The Goodman GPHH36031 is designed to deliver quiet, dependable comfort at an affordable price, making it a practical choice for year-round heating and cooling performance.
SPECIFICATIONS
| SKU | GPHH36031 |
|---|---|
| Weight (in lbs) | 500.000000 |
| AHRI Certificate Number | 208842409 |
| Brand/Manufacturer | Goodman |
| Replaces | GPH1460M4E, GPH1460H41, 663051630550 |
| HSPF | 8 |
| Cooling BTU | 57,000 BTU |
| Heating BTU | 54,500 BTU |
| Decibel Level (dBA) | 80 decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Configuration | Horizontal |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Compressor Type | Scroll |
| Electrical | 208/230v 1Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 60 amps |
| Min. Breaker Size | 40.2 amps |
| Tonnage | 5 Ton |
| Height | 38 1/2" |
| Width | 66" |
| Depth | 34" |
| Warranty | 10 Years with Online Registration |
