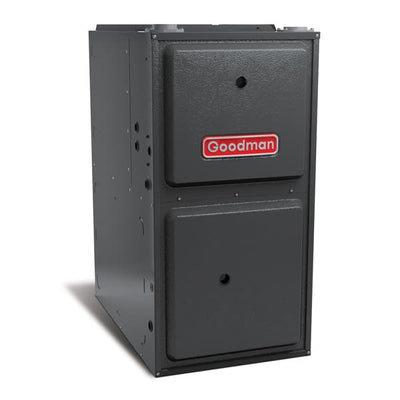

Goodman GMEC96; 96% AFUE; 100,000 BTU; Two Stage Multi Speed Gas Furnace

Availability:
Out-Stock
High Efficiency Upflow/Horizontal Blower with 1,600 Max CFM. Natural Gas with Low NOx Emissions. 21" Cabinet Width.

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
GMEC961004CN
ID:
HE201-2030

PRODUCT INFO

Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMEC96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GMEC961004CN utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GMEC96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GMEC96.

Advanced Heat Exchanger Design
The GMEC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger
This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.

Quiet Comfort
The blower, motor, and gas valve of the GMEC961004CN were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.

Venting Options
The GMEC961004CN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.

Secure Cabinet
All GMEC96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.

Easy Integration
The GMEC961004CN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

SPECIFICATIONS

General Information
TypeGas Furnace
Product LineGMEC96
Fuel Type Natural Gas
Vent Type
Direct Vent
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051553965

Performance
AFUE 96 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output96000 BTU
Low Fire Input70000 BTU
Low Fire Output67200 BTU
Maximum Air Flow1600 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes

Dimensions
Flue Connection Size2 or 3 Inches
Cabinet Width21 Inches
Product Height34 1/2 Inches
Product Width21 Inches
Product Depth28 3/4 Inches
Product Weight140 Pounds
Shipping Weight140 Pounds

Certifications
ETL ListedYes
Energy Star ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number7423789
