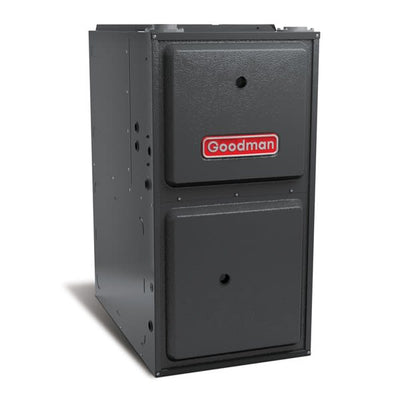

Goodman GMEC96; 96% AFUE; 40,000 BTU; Two Stage Multi Speed Gas Furnace

High Efficiency Upflow/Horizontal Blower with 1,200 Max CFM. Natural Gas with Low NOx Emissions. 14" Cabinet Width.

For pricing and to purchase this product:

Please register, login, or contact us for a quote request



Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMEC96 two-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. It is equipped with a five-speed ECM blower motor, which provides your home with comfortable, efficient circulation through a wide variety of conditions. The GMEC960403AN was designed for ease of installation, it has multiple options for orientation and gas and electrical connections. Maintenance is just as easy as installation thanks to the unit's self-diagnosing control board. Backed by Goodman's generous warranty, the GMEC96 provides comfort and peace of mind to homeowners.

Advanced Heat Exchanger Design
The GMEC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer with wrinkle bent tubes that enhance the heat exchanger's dependability and longevity.

Dual$aver Technology
Dual$aver Technology begins operating the furnace at the lower stage for ideal efficiency. The control board of the furnace then uses historical temperature data from your home to decide whether the higher stage of heating will be necessary.

Quiet Comfort
The blower, gas valve, and draft inducer of the GMEC960403AN were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.

Secure Cabinet
All GMEC96 furnaces are protected by a durable steel cabinet with an insulated heat exchanger section to prevent heat loss.

Easy Integration
The GMEC960403AN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.


General Information
TypeGas Furnace
Product LineGMEC96
Fuel Type Natural Gas
Vent Type
Direct Vent
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
Gas Conversion KitAvailable
Installation AvailableYes
AFUE 96 %
Heating BTU40000
High Fire Input40000 BTU
High Fire Output38400 BTU
Low Fire Input28000 BTU
Low Fire Output26880 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes

Flue Connection Size2 or 3 Inches
Cabinet Width14 Inches
Product Height34 1/2 Inches
Product Width14 Inches
Product Depth28 3/4 Inches
Product Weight112 Pounds
Shipping Weight112 Pounds
ETL ListedYes
Energy Star ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number10515332
