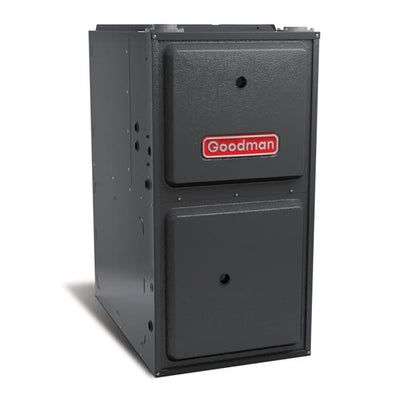

Goodman GMSS96; 96% AFUE; 100,000 BTU; Single Stage Multi Speed Gas Furnace

AFUE: 96.0%; Configuration: Upflow/Horizontal; BtuH Input: 100,000; BtuH Output: 96,000; Nom. CFM: 2,000; CFM @ 0.5" ESP: 1,858; Min. Circuit Amps: 13.7; Vent Size: 2"-3"; Motor Type: PSC; Width: 21"; Height: 34-1/2"; Depth: 28-3/4"; Wt. Lbs.: 142; Stages: Single-Stage; LoNox: Yes

For pricing and to purchase this product:

Please register, login, or contact us for a quote request



Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMSS96 multi-speed furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a single-stage furnace. It is equipped with a four-speed blower motor, which provides your home with comfortable circulation through a wide variety of conditions. The GMSS961005CN was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. When it comes to high efficiency heating from a single stage furnace, Goodman's GMSS96 sets the standard..

Advanced Heat Exchanger Design
The GMSS96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer with wrinkle bent tubes that enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger
This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger. This secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.

Quiet Comfort
The blower and gas valve of the GMSS961005CN were selected for their incredibly low sound levels.

Venting Options
The GMSS961005CN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air provided from within your home.

Secure Cabinet
All GMSS96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.

Easy Integration
The GMSS961005CN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.


General Information
TypeGas Furnace
Product LineGMSS96
Fuel Type Natural Gas
Vent Type
Direct Vent
Modulating/Staging Single Stage
Blower MotorPSC Multi-Speed
Gas Conversion KitAvailable
Installation AvailableYes

AFUE 96 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output96000 BTU
Maximum Air Flow2000 CFM
Low NOx EmissionsYes

Flue Connection Size2 or 3  Inches
Cabinet Width21 Inches
Product Height34 1/2 Inches
Product Width21 Inches
Product Depth28 3/4 Inches
Product Weight142 Pounds
Shipping Weight142 Pounds
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number7365100
