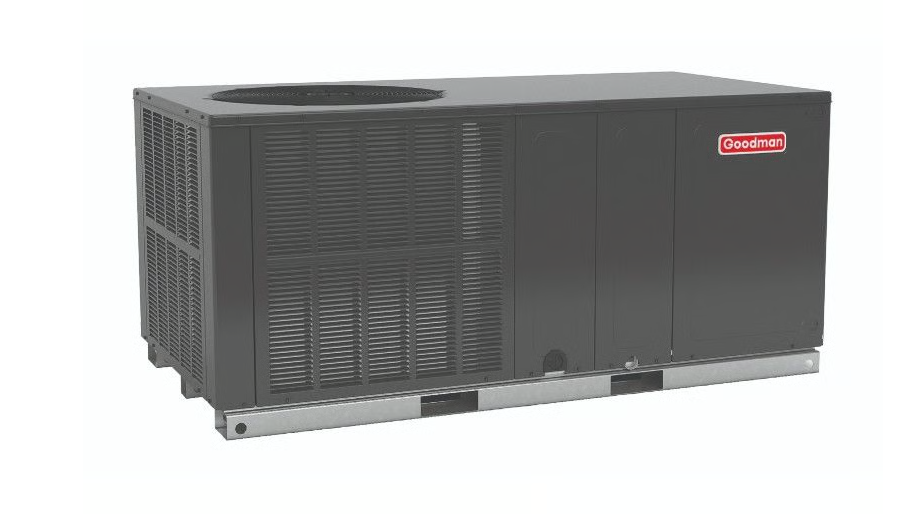

Goodman Packaged Heat Pump 15.2 SEER2, Single Stage, Horizontal, 2 Ton, GPHH52431
PRODUCT OVERVIEW
The Goodman GPHH52431 is a 2-ton, 15.2 SEER2 packaged heat pump that provides efficient year-round heating and cooling from a single, self-contained outdoor unit. Designed for residential and light commercial applications, it delivers dependable electric comfort without the need for separate furnace and AC systems.
Built for horizontal installation, the GPHH52431 features a high-efficiency scroll compressor, multi-speed ECM blower motor, and a durable galvanized steel cabinet with a baked-on powder-coat finish for long service life. It uses eco-friendly R-32 refrigerant and includes a fully insulated cabinet for quieter operation, making it a reliable and energy-efficient all-in-one comfort solution.
QUICK FACTS
-
2-ton packaged heat pump
-
15.2 SEER2 cooling efficiency
-
Provides both heating and cooling
-
Uses R-32 refrigerant
-
High-efficiency scroll compressor
-
Multi-speed ECM blower motor
-
Horizontal discharge configuration
-
Fully insulated cabinet for low sound output
-
Factory charged and tested
-
Suitable for residential or light commercial use
$4,785.00 USD
SKU:
GPHH52431
ID:
HE101-2122
Categories:
PRODUCT INFO
STANDARD FEATURES
High-efficiency scroll compressor
Multi-speed ECM indoor blower motor
Copper tube / aluminum fin condenser coil
All-aluminum evaporator coil
Totally enclosed, permanently lubricated condenser fan motor
Factory charged system
Quiet horizontal discharge airflow
Electric heat kit available (field-installed option)
AHRI Certified and UL Listed
CABINET FEATURES
Heavy-gauge galvanized steel cabinet with Architectural Gray powder-paint finish
Louvered condenser coil protection
Aluminum foil-faced internal insulation reinforced with fiberglass scrim
Fully insulated blower compartment with convenient access panels
Meets cabinet air leakage requirements per ASHRAE Standard 193
Single cabinet footprint across all tonnages
When properly anchored, meets 2023 Florida Building Code requirements for hurricane-type wind resistance
SPECIFICATIONS
| Brand | Goodman | SKU | GPHH52441 |
| SEER Rating | 15.0 | SEER 2 | 15.0 |
| Tonnage | 2 | Weight | 350 lb |
| Manufacturer | Goodman | EER HSVTC | 11.2 |
| Energy Star Certified | No | Heating Capacity Nominal | 24000 Btu/H |
| Refrigerant Type | R-32 | Unit Height | 30 in |
| Unit Width | 66 in | Regional Compliance | Southwest, Southeast, North |
| Cooling Capacity Nominal | 23600 Btu/H | Installation Configuration | Horizontal |
| Electric Heat Range | 9.5 kW | Max Overcurrent Protection | 25 A |
| Power Phase | 1 Ph | Power Voltage | 208-230 V |
| Compressor Stages | Single Stage | Compressor Type | Scroll |
| Energy Source | Electric | Motor Speed Type | Multi Speed ECM |
| Model Efficiency | 15.2 SEER2 | Heat Exchanger Type | Air Cooled |
