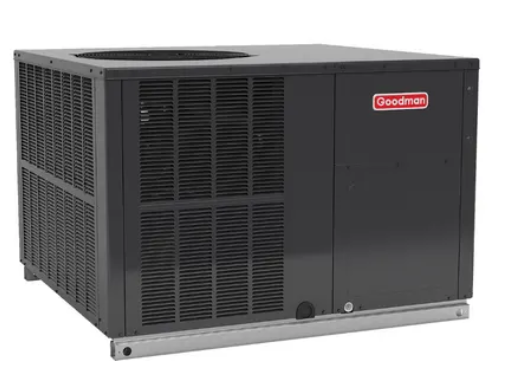

Goodman Packaged Heat Pump 15.2 SEER2, Two Stage, Downflow/Horizontal, 4 Ton, GPHM54831
Product Overview
The Goodman GPHM54831 is a 4-ton, 15.2 SEER2 packaged heat pump that delivers efficient heating and cooling in one self-contained outdoor unit. Built on the GPHM5 R-32 platform, it uses low-GWP R-32 refrigerant and supports horizontal or downflow installation. It features a high-efficiency scroll compressor, multi-speed ECM blower motor, durable coil design, and a powder-coated galvanized-steel cabinet with insulated panels for long-lasting performance.
Quick Facts
-
Model: GPHM54831
-
Size: 4 Ton
-
Efficiency: 15.2 SEER2 / 6.7 HSPF2
-
Refrigerant: R-32 (factory charged)
-
Install: Horizontal or downflow (multi-position)
-
Electrical: 208/230V, 1-phase, 60 Hz
-
Weight: 492 lbs
$6,725.00 USD
SKU:
GPHM54831
ID:
HE101-2132v
Categories:
PRODUCT INFO
Standard Features
High-efficiency scroll compressor
Multi-speed ECM indoor blower motor
Copper tube / aluminum fin condenser coil
All-aluminum evaporator coil
Totally enclosed, permanently lubricated condenser fan motor
Factory-charged R-32 refrigerant system
Quiet horizontal discharge
Electric heat kit available as a field-installed option
AHRI Certified / UL Listed
Cabinet Features
Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coated finish
Louvered condenser coil protection
Aluminum foil–faced internal insulation reinforced with fiberglass scrim
Fully insulated blower compartment with convenient access panels
Meets cabinet air leakage requirements per ASHRAE Standard 193
One footprint for all tonnages
Meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds when properly anchored
SPECIFICATIONS
Brand
Goodman
Model #
GPHM54831
SEER2/EER2
15.2
Refrigerant
R-32
Tonnage
4.0 Ton
Voltage Requirements
208V To 230V
AHRI No
GPHM54831
Burner Stages
Two Stage
Airflow Direction
Horizontal
Power Phase ( Single/Three)
1 Ph
Dimensions - (Shipping Unit Width)
47 in
Dimensions - (Shipping Unit Height)
42-3/4 in
Dimensions - (Shipping Unit Depth)
51 in
Weight - (Shipping Unit)
492 lb
Power Frequency
60 Hz
Energy Source
Electric
Compressor Type
Scroll
Compressor Stages
Two Stage
Heating Capacity - (Nominal)
41000 Btu/H
Cooling Capacity - (Nominal)
45500 Btu/H
