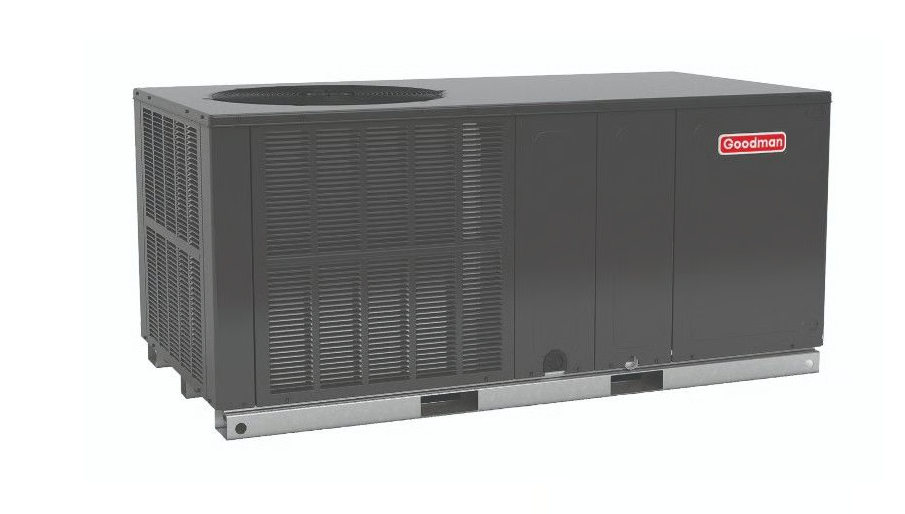

Goodman Packaged Heat Pump 15.2 SEER2, Two Stage, Horizontal, 3.5 Ton, GPHH54231
Product Overview
The Goodman GPHH54231 is a 3.5-ton, 15.2 SEER2 packaged heat pump that provides efficient heating and cooling in one self-contained outdoor unit. Ideal for residential and light commercial use, it supports rooftop or ground-level installation and requires only duct connections, wiring, and a drain.
Built on the GPHH5 platform, it features a two-stage scroll compressor, ECM blower motor, durable coil design, and a powder-coated galvanized-steel cabinet with quiet horizontal discharge. Optional electric heat kits are available for auxiliary heat.
Quick Facts
-
Model: GPHH54231
-
Size: 3.5 Ton (42,000 BTU)
-
Efficiency: 15.2 SEER2 / 6.7 HSPF2
-
Refrigerant: R-32 (factory charged)
-
Compressor: Two-stage scroll
-
Blower: Multi-speed ECM
-
Install: Rooftop or ground-level
-
Electric Heat: Optional heat kits available
-
Rated: AHRI Certified / UL Listed
$5,640.00 USD
SKU:
GPHH54231
ID:
HE101-2125
Categories:
PRODUCT INFO
Standard Features
High-efficiency scroll compressor
Multi-speed ECM indoor blower motor
Copper tube / aluminum fin condenser coil
All-aluminum evaporator coil
Totally enclosed, permanently lubricated condenser fan motor
Factory-charged system
Quiet horizontal discharge
Field-installed electric heat kit available
AHRI Certified / UL Listed
Cabinet Features
Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coated finish
Louvered panels for condenser coil protection
Aluminum foil–faced internal insulation reinforced with fiberglass scrim
Fully insulated blower compartment with easy-access service panels
Meets cabinet air leakage requirements per ASHRAE Standard 193
Single cabinet footprint across all tonnages
Meets 2023 Florida Building Code unit integrity requirements for hurricane-prone regions when properly anchored
SPECIFICATIONS
Brand
Goodman
Model #
GPHH54231
SEER2/EER2
15.2
Refrigerant
R-32
Tonnage
3.5 Ton
Voltage Requirements
208V To 230V
AHRI No
GPHH54231
Burner Stages
Two Stage
Airflow Direction
Horizontal
Furnace BTU
42,000 BTU's
Power Phase ( Single/Three)
1 Ph
Dimensions - (Shipping Unit Width)
66 in
Dimensions - (Shipping Unit Height)
35 in
Dimensions - (Shipping Unit Depth)
34 in
Weight - (Shipping Unit)
410 lb
Power Frequency
60 Hz
Energy Source
Electric
Compressor Type
Scroll
Compressor Stages
Two Stage
Heating Capacity - (Nominal)
41500 Btu/H
Cooling Capacity - (Nominal)
42000 Btu/H
