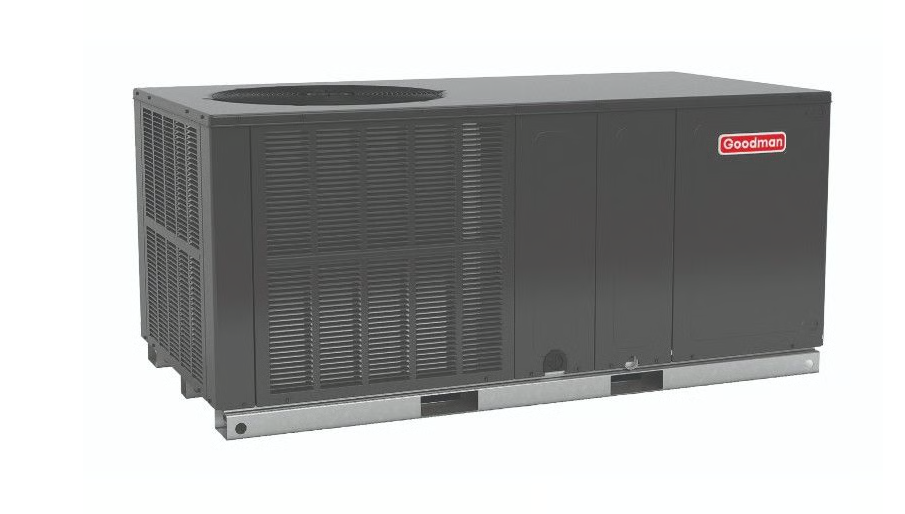

Goodman Packaged Heat Pump 15.2 SEER2, Two Stage, Horizontal, 3 Ton, GPHH53631
Product Overview
The Goodman GPHH5 SEER2 Packaged Heat Pump delivers reliable heating and cooling in a single, self-contained outdoor unit. Designed for residential and light commercial use, it features a durable galvanized-steel cabinet with a UV-resistant powder-coated finish for long-lasting performance.
This packaged system supports ground-level or rooftop installation and requires only duct connections, electrical wiring, and a condensate drain. Efficient heat pump technology helps reduce energy use compared to electric resistance heating, with optional electric heat kits available for auxiliary heat and defrost operation.
Quick Facts
-
Packaged heat pump with heating and cooling
-
SEER2-rated efficiency
-
Residential and light commercial applications
-
Durable galvanized-steel cabinet
-
Ground or rooftop installation
-
Factory-charged and tested
-
Optional electric heat kits available
$5,408.00 USD
SKU:
GPHH53631
ID:
HE101-2124
Categories:
PRODUCT INFO
Standard Features
High-efficiency scroll compressor
Multi-speed ECM indoor blower motor
Copper tube / aluminum fin condenser coil
All-aluminum evaporator coil
Totally enclosed, permanently lubricated condenser fan motor
Factory-charged and tested system
Quiet horizontal air discharge
Field-installed electric heat kits available
AHRI Certified and UL Listed
Cabinet Features
Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coated finish
Louvered panels for condenser coil protection
Aluminum foil–faced internal insulation reinforced with fiberglass scrim
Fully insulated blower compartment with easy-access service panels
Meets cabinet air leakage requirements per ASHRAE Standard 193
Single cabinet footprint across all tonnages
Meets 2023 Florida Building Code unit integrity requirements for hurricane-prone regions when properly anchored
SPECIFICATIONS
Brand
Goodman
Model #
GPHH53631
SEER2/EER2
15.2
Refrigerant
R-32
Tonnage
3.0 Ton
Voltage Requirements
208V To 230V
AHRI No
GPHH53631
Burner Stages
Two Stage
Airflow Direction
Horizontal
Furnace BTU
36,000 BTU's
Power Phase ( Single/Three)
1 Ph
Dimensions - (Shipping Unit Width)
66 in
Dimensions - (Shipping Unit Height)
35 in
Dimensions - (Shipping Unit Depth)
34 in
Weight - (Shipping Unit)
400 lb
Power Frequency
60 Hz
Energy Source
Electric
Compressor Type
Scroll
Compressor Stages
Two Stage
Heating Capacity - (Nominal)
30000 Btu/H
Cooling Capacity - (Nominal)
32600 Btu/H
