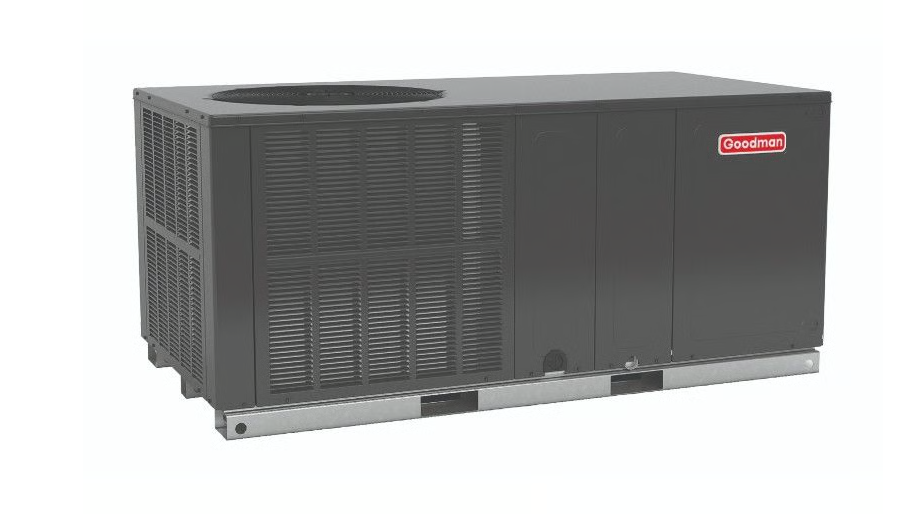

Goodman Packaged Heat Pump 15.2 SEER2, Two Stage, Horizontal, 5 Ton, GPHH56031
Product Overview
The Goodman GPHH56031 is a 5-ton, 15.2 SEER2 packaged heat pump that delivers efficient heating and cooling in one self-contained outdoor unit. Built on the GPHH5 platform, it features a two-stage scroll compressor, multi-speed ECM blower motor, durable coil design, and a powder-coated galvanized-steel cabinet with quiet horizontal discharge. Ideal for larger residential and light commercial rooftop or ground installs, with optional electric heat kits available.
Quick Facts
-
Model: GPHH56031
-
Size: 5 Ton
-
Efficiency: 15.2 SEER2 / 6.7 HSPF2
-
Refrigerant: R-32 (factory charged)
-
Compressor: Two-stage scroll
-
Blower: Multi-speed ECM
-
Install: Rooftop or ground-level
-
Electric Heat: Optional heat kits available
$6,754.00 USD
SKU:
GPHH56031
ID:
HE101-2127
Categories:
PRODUCT INFO
Standard Features
High-efficiency scroll compressor
Multi-speed ECM indoor blower motor
Copper tube / aluminum fin condenser coil
All-aluminum evaporator coil
Permanently lubricated condenser fan motor
Factory-charged system
Quiet horizontal discharge
Field-installed electric heat kit available
AHRI Certified / UL Listed
Cabinet Features
Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coated finish
Louvered condenser coil protection
Foil-faced internal insulation with fiberglass scrim reinforcement
Fully insulated blower compartment with easy-access panels
Meets air leakage requirements per ASHRAE 193
Single cabinet footprint across all tonnages
Meets 2023 Florida Building Code wind requirements when properly anchored
SPECIFICATIONS
Brand
Goodman
Model #
GPHH56031
SEER2/EER2
15.2
Refrigerant
R-32
Tonnage
5.0 Ton
Voltage Requirements
208V To 230V
AHRI No
GPHH56031
Burner Stages
Two Stage
Airflow Direction
Horizontal
Furnace BTU
60,000 BTU's
Power Phase ( Single/Three)
1 Ph
Dimensions - (Shipping Unit Width)
66 in
Dimensions - (Shipping Unit Height)
38.5 in
Dimensions - (Shipping Unit Depth)
34 in
Weight - (Shipping Unit)
440 lb
Power Frequency
60 Hz
Energy Source
Electric
Compressor Type
Scroll
Compressor Stages
Two Stage
Heating Capacity - (Nominal)
52000 Btu/H
Cooling Capacity - (Nominal)
55000 Btu/H
