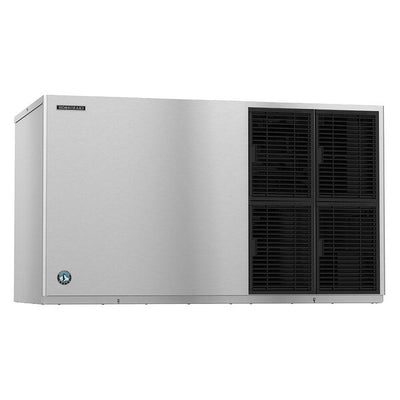

Hoshizaki KM-1301SAJ3 48" Crescent Cube, Stackable Ice Machine Head, Air Cooled, 1,427 lb/24h, 208/230v/3ph

  • Ice Machine
  • Cube-Style
  • 48"W
  • Air-cooled
  • Self-contained condenser
  • Production capacity up to 1,427 lb/24 hours at 70°/50° (1,350 lb AHRI certified at 90°/70°)
  • Crescent cube style
  • Stainless steel exterior
  • R-404A refrigerant
  • 208-230v/60/3-ph, 9.5 amps, NSF, UL, ENERGY STAR
Ice storage bin or dispenser is sold separately!

$9,166.30 USD

Buy Now


This Hoshizaki KM-1301SAJ3 air cooled ice machine can produce up to 1,427 lb. of crescent cube ice per day, and with its stackable design you can put a second unit on top for even greater ice production in the same floor space! Its stainless steel exterior and evaporator are designed for years of dependable service, and the unit utilizes "H-Guard Plus" antimicrobial protection for increased sanitation. The KM-1301SAJ3 requires a 208-230V three phase electrical connection.

  • Stackable design allows increased ice production

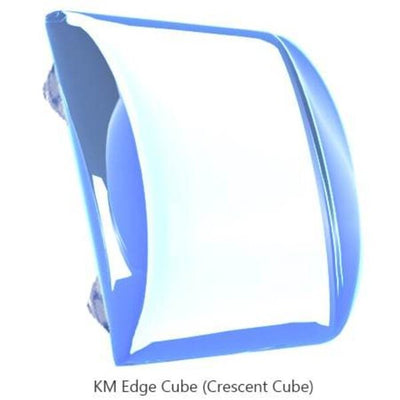

  •  Produces "crescent cube" (1 1/8" x 1 1/2" x 1/2") half-cylinder ice
  • EverCheck alert system, CycleSaver design for ease of use and efficiency
  • Stainless steel exterior and evaporator
  •  R-404A refrigerant
  • 208-230V 3 phase

Overall Dimensions:

  • Left to Right: 48 1/4"
  • Front to Back: 27 7/16"
  • Height: 27 3/8"


Width48 1/4 Inches

Depth27 7/16 Inches

Height27 3/8 Inches

Amps9.5 Amps

Hertz60 Hertz

Phase3 Phase

Voltage208 - 230 Volts

24 Hour Ice Yield
1,427 Pounds

Condenser TypeAir Cooled

Energy Star QualifiedYes

Ice TypeCrescent Cubes

Installation TypeStackable

NSF ListedYes

Power Usage3.95 kWh per 100 lbs.


TypeIce Machines

Water Usage15.6 Gallons per 100 lbs.
