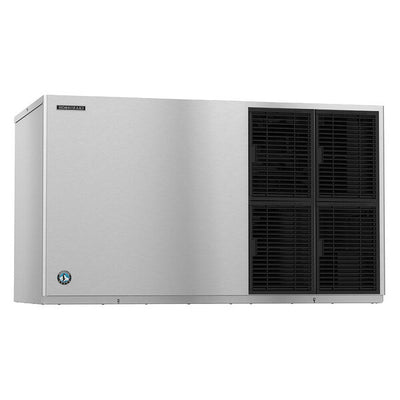

Hoshizaki KM-1601SAJ 48" Crescent Cube, Stackable Ice Machine Head, Air Cooled, 1,513 lb/24h, 208/230v/1ph

  • Ice Machine
  • 48"W
  • Air-cooled
  • Self-contained condenser
  • Production capacity up to 1,513 lb/24 hours at 70°/50° (1,433 lb AHRI certified at 90°/70°)
  • Crescent cube style
  • Stainless steel exterior, R-404A refrigerant
  • 208-230v/60/1-ph, 15.9 amps, NSF, UL
Ice storage bin or dispenser is sold separately!

$10,181.60 USD

Buy Now


This Hoshizaki KM-1601SAJ air cooled ice machine can produce up to 1,513 lb. of crescent cube ice per day, and with its stackable design you can put a second unit on top for even greater ice production in the same floor space! Its stainless steel exterior and evaporator are designed for years of dependable service, and the unit utilizes "H-Guard Plus" antimicrobial protection for increased sanitation. The KM-1601SAJ requires a 208-230V electrical connection.

  • Stackable design allows increased ice production
  • Produces "crescent cube" (1 1/8" x 1 1/2" x 1/2") half-cylinder ice
  •  EverCheck alert system, CycleSaver design for ease of use and efficiency
  •  Stainless steel exterior and evaporator
  • R-404A refrigerant
  •  208-230V

Overall Dimensions:

  • Left to Right: 48"
  • Front to Back: 27 3/8"
  • Height: 27 3/8"


Width48 Inches

Depth27 3/8 Inches

Height27 3/8 Inches

Amps15.9 Amps

Hertz60 Hertz

Phase1 Phase

Voltage208 - 230 Volts

24 Hour Ice Yield
1,513 Pounds

Condenser TypeAir Cooled

Energy Star QualifiedYes

Ice TypeCrescent Cubes

NSF ListedYes

Power Usage4.24 kWh per 100 lbs.


TypeIce Machines

Water Usage21 Gallons per 100 lbs.
