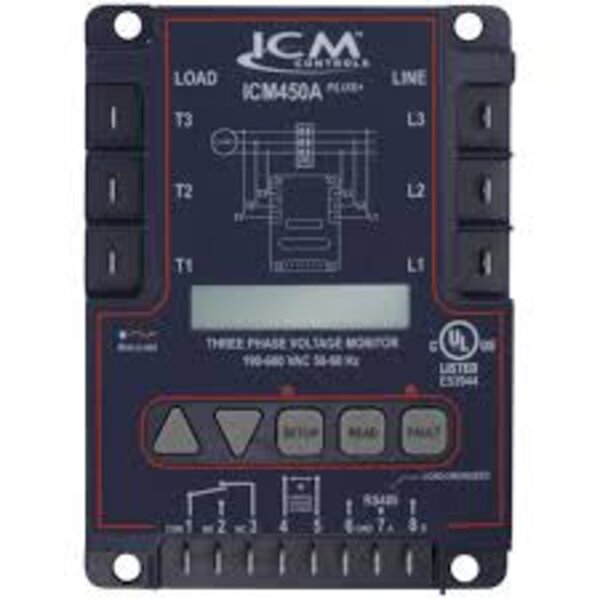

ICM ICM450A+ 3 Phase Line Voltage Monitor, Delay on Break Timer, Modbus RS485 Port & Real Time Clock (Eng. & Spanish)

The ICM450A PLUS+ is the latest 3-phase offerings, providing superior motor protection from premature failure and damage caused by common voltage faults such as phase unbalance, over/under voltage, phase loss and phase reversal.

A design upgrade from our flagship ICM450, these newest models feature an easy to read, backlit display that makes quick work of adjusting the variable settings to better tailor the unit to the application. Common 1/4" spade terminations eliminate the potential for exposed wires and allow for a better and safer connection. Include menu options for English and Spanish readouts.

Product Features:

• Backlit LCD
• Simultaneous 3-phase true RMS voltage monitoring
• Factory calibrated
• 3-phase voltages simultaneously displayed on LCD
• Fault memory
• Fault monitoring: High/low voltage, voltage unbalance, phase loss, phase reversal
• Real time clock, date and time stamped events
• Simple configuration
• Fully adjustable variables
• Modbus RS485 communications
• LED indicators
• Common 1/4" quick connect terminations
• English or Spanish menu options
• Line Voltage: Universal, 190-600 VAC
• Frequency: 50-60 Hz
• Load Side Monitoring: Optional
• Control Voltage: 18-240 VAC
• Output:
• Type: Relay, SPDT
• Voltage Range: 277 VAC @ 6A maximum
• Operating Temperature: -40° to 149°F (-40° to 65°C)
• Storage Temperature: -40° to 185°F (-40° to 85°C)
• Mounting: Surface mount using (2) #8 screws
• Terminations: 1/4" quick connects
• Weight: 12 ounces (341 grams)
• ModBus: RS485 Communication
