Re-Verber-Ray DR-60, High Intensity Gas Fired Infrared Heater 60,000 BTU

Availability:
In-Stock

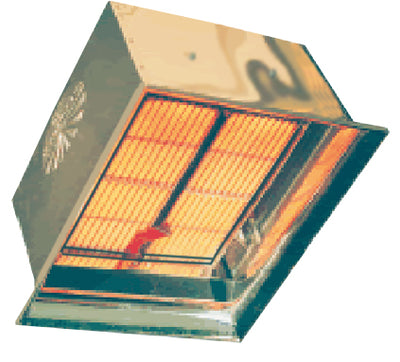

Re-Verber-Ray DR-60 High Intensity Infrared Heater

  • 60,000 BTU/H input.
  • Gas Type: Natural Gas or Propane Gas
  • Rugged non-corrosive heater construction using aluminum and stainless steel.
  • 5-year limited ceramic burner warranty.
  • CSA Design Certified, UL-Listed, CE Certified.
  • Available Control OPTIONS (See Button Below)
  • Title

    For pricing and to purchase this product:

    Please register, login, or contact us for a quote request

    SKU:
    DR-60
    ID:
    HE202-0005

    PRODUCT INFO

       The DR Series represents today’s most popular line of gas-fired, infrared heaters. This unvented heater is ideal for use in many applications including areas of high air filtration, high ceilings and spot heating. The DR Series offers exclusive design features, a proven history and a variety of BTU and control options.

    Benetis of heating with infared:

    • Superior Comfort
    • Reduced Energy
    • Consumption
    • Flexibility
    • Durability
    • Radiant Efficiency

    Product Features:

    • Direct Spark Ignition, 100% Shutoff. (NFS-2, PFS-2 controllers)
    • Manual Ignition, Constant Pilot, 100% Shutoff. (NMV-2 PMV-2 Millivolt controllers)
    • 35 ft. wire and millivolt thermostat are included with each NMV-2/PMV-2 controls
    • Select high temperature, stainless steel rods increase heater temperature and efficiency.

    Mounting

    • 20° to 35° from horizontal.
    • Optional - Horizontal parabolic reflector (specify size) to emulate 0-15° angle.
    • Inlet Pipe Size 1/2” NPT
    • Mounting Hole Diameter 5/16”

    WARNING
    To Prevent Serious Injury or Death: Unit must be used in a well ventilated area. When used indoors or in an enclosed area, provide a positive air displacement of at least 4.0 CFM per 1,000 BTU/h of the heater’s rated input.

    SPECIFICATIONS


    DR-60


    BTU
    60000

    SQ. IN. of Radiating Surface
    170

    Typ. or RCMD. Mounting Heigts
    (Standard Reflector)

    14’ to 16’

    Net Weight Lbs
    27

    Gas Type
    Natural or Propane

    Ceramic Operating Temperature
    1780° F

    Dimensions
    H: 14 3/8”


    L: 22 5/8”


    W: 18 7/8”

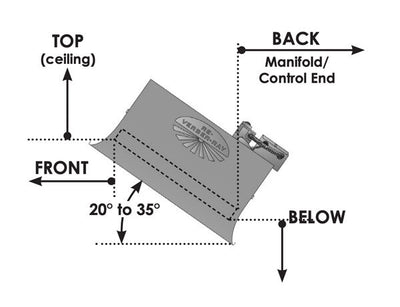

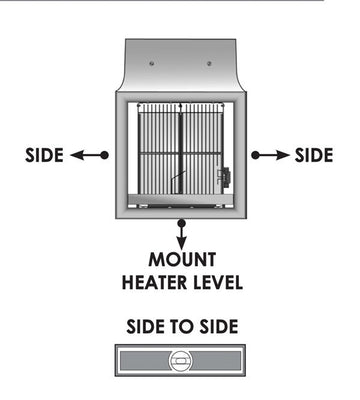

    Clearance to Combustibles
    Sides(s): 32”


    Back: 18”


    Top: 40”


    Below/Front: 72”

    Recommended Mounting Heights and Distances for “Spot” Heating

    Type of Area
     (Surroundings)

    Approx.
    Area
     Covered

    Approx.
    Coverage
     (sq. ft.)

    Centers for
    Full Coverage
    (Spot & Area)
     Htg. Only

    Cold/Drafty
    16’ x 16’
    256
    16’

    Average
    18’ x 18’
    324
    18’

    Protected/Insul.
    20’ x 20’
    400
    20’
