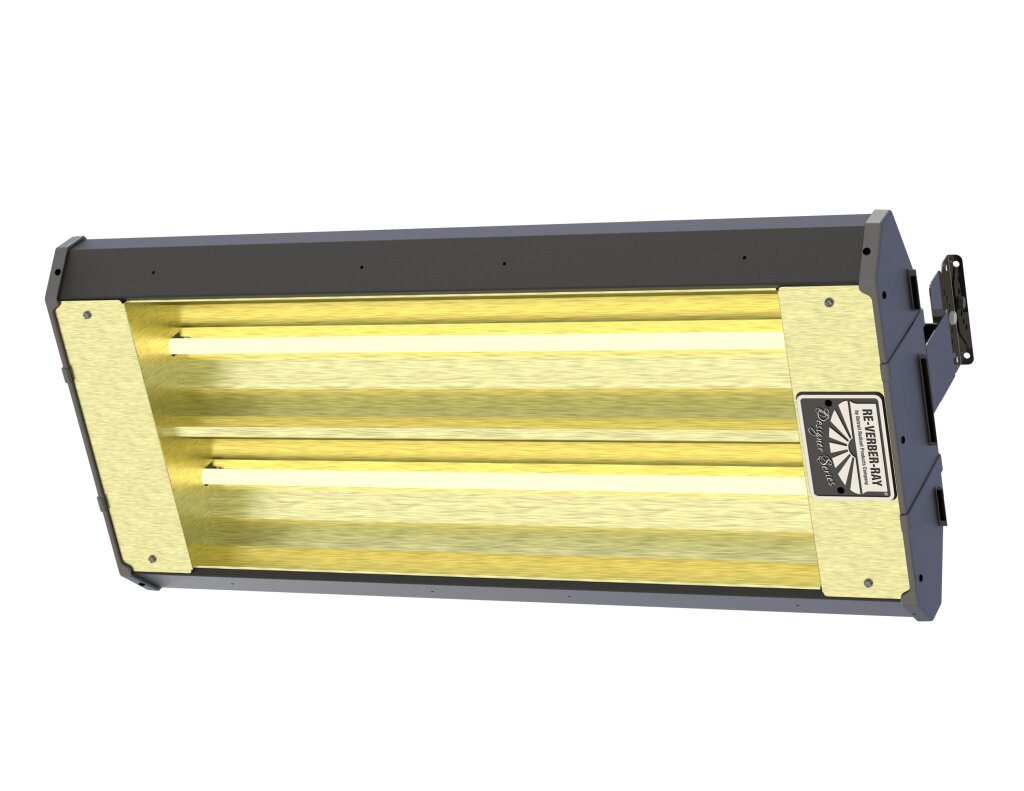

Re-Verber-Ray, SW2-24-2 Short-Wave Electric Infrared Heater; 10,919 BTU
Short-Wave Electric Infrared Heater
- BTU/h input: 10,919
- Electrical: From 208 to 480 Volts (See Options Buttom Below)
- Watts: 3,200
- Series: SW2
-
Lamp Quantity: 2
- Housing: Black Powder-coated Aluminized Steel or Stainless Steel
for Added Durability and Corrosion Resistance (See Options Buttom Below)
- Lamp Elements: Coiled Tungsten Filament in a Clear or Glare
Reducing Ruby Quartz Tube w/ Porcelain End Caps (See Options Buttom Below) - Certifications & Approvals: ETL Listed for Indoor & Outdoor Commercial, Outdoor Residential
- Limited Warranty: 1 year (All Components)
PRODUCT INFO
The SW2 Series produces short-wave infrared heat that is well suited for use in spot heating applications. Offered in single, dual or triple lamp options and a choice of clear or glare-reducing ruby lamps, this series can be easily customized to match your heating needs in a wide variety of indoor or outdoor commercial applications.
Product Features
- BTU/h input: 10,919
- Electrical: From 208 to 480 VAC
- Watts: 3,200
- Series: SW2
- Lamp Quantity: 2
Lamp Elements
- Coiled tungsten filament housed within a sealed quartz tubing.
- Stainless Steel end caps.
- Instantaneous heat-up & cool-down.
- Clear quartz.
- Optional glare reduction ruby quartz.
Controls
- Field supplied.
Reflectors
- Gold colored, anodized aluminum reflectors reduces visible light glare.
- Wide, symmetric design.
Approvals
- ETL Listed for indoor and outdoor commercial, outdoor residential
- CSA 22.2 #46 - M1988.
- UL 2021, 1997
Benefits of Heating With Electric Infrared
- Superior Comfort
- Reduced Energy Consumption
- Durability
- Even Heat Distribution
- Outdoor Tested & Approved
- Long Lamp Life Expectancy
SPECIFICATIONS
| SW2-24 | |||
| BTU/h | 10,919 | ||
| Electrical | 208 to 480 VAC | ||
| Control Amps | 6.67 to 15.38 Amps | ||
| Watts | 3,200 | ||
| Overall Unit Length Inches | 24 in. | ||
| Weight (lbs) | 20 |
| Series | SW2-24 | ||
| Lamp Quantity | 2 | ||
| Recommended Mounting Height* [DIM A] | 8 to 10 ft. | ||
| Recommended Distance Between Heaters [DIM B] | 4 to 10 ft. | ||
| Approx. Coverage [C] | 400 sq. ft. | ||
| Approx. Watts [C] | per Sq. Ft.: 8 | ||
| per Sq. M: 0.7 |
| Clearances to Combustibles in Inches | |||||||||||
| Mounting Angle | Side | End | Top | Below | |||||||
| Front | Behind | ||||||||||
| 0° | 28 | 28 | 26 | 6 | 86 | ||||||
| 45° | 86 | 4 | 26 | 10 | 86 | ||||||
