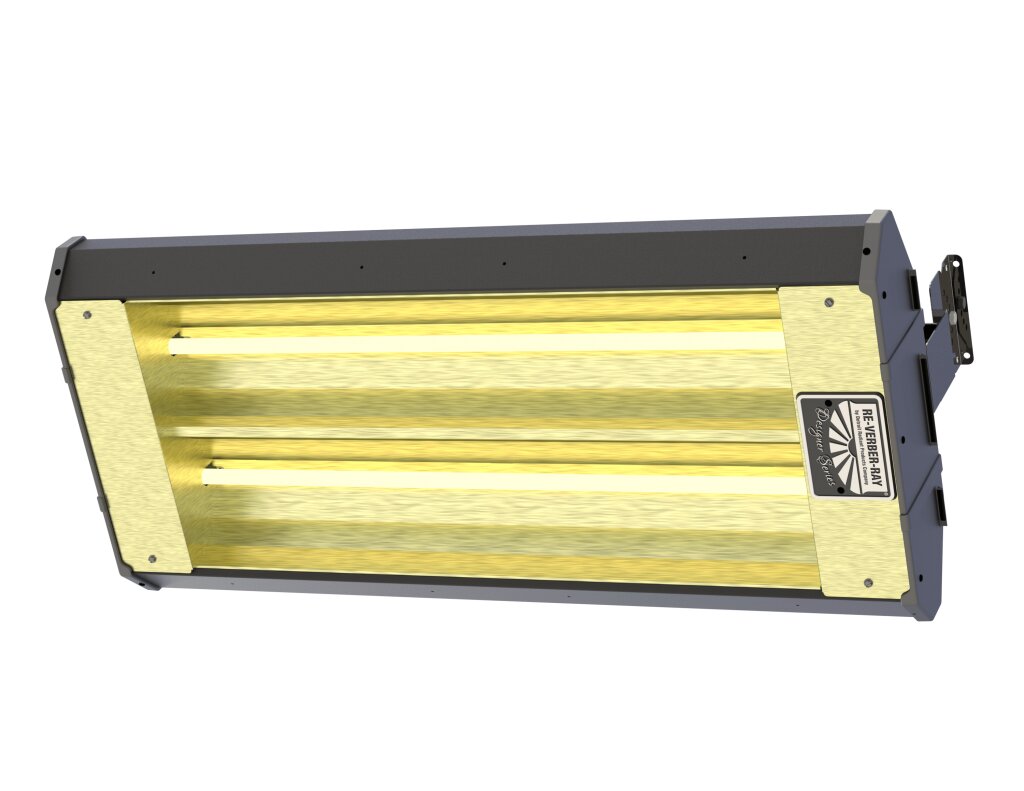

Re-Verber-Ray, SW2-46-2 Short-Wave Electric Infrared Heater; 24,909 BTU

Availability:
In-Stock

Short-Wave Electric Infrared Heater

  • BTU/h input: 24,909
  • Electrical: 480 Volts
  • Watts: 7,300
  • Series: SW2
  • Lamp Quantity: 2
  • Housing: Black Powder-coated Aluminized Steel or Stainless Steel
    for Added Durability and Corrosion Resistance (See Options Buttom Below)
  • Lamp Elements: Coiled Tungsten Filament in a Clear or Glare
    Reducing Ruby Quartz Tube w/ Porcelain End Caps (See Options Buttom Below)
  • Certifications & Approvals: ETL Listed for Indoor & Outdoor Commercial, Outdoor Residential
  • Limited Warranty: 1 year (All Components)
Housing
Lamp Type

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
SW2-46B2-G36W
ID:
HE202-7006

PRODUCT INFO

The SW2 Series produces short-wave infrared heat that is well suited for use in spot heating applications. Offered in single, dual or triple lamp options and a choice of clear or glare-reducing ruby lamps, this series can be easily customized to match your heating needs in a wide variety of indoor or outdoor commercial applications.

Product Features

  • BTU/h input: 24,909
  • Electrical: From 480 VAC
  • Watts: 7,300
  • Series: SW2
  • Lamp Quantity: 2

Lamp Elements

  • Coiled tungsten filament housed within a sealed quartz tubing.
  • Stainless Steel end caps.
  • Instantaneous heat-up & cool-down.
  • Clear quartz.
  • Optional glare reduction ruby quartz.

Controls

  • Field supplied.

Reflectors

  • Gold colored, anodized aluminum reflectors reduces visible light glare.
  • Wide, symmetric design.

Approvals

  • ETL Listed for indoor and outdoor commercial, outdoor residential
  • CSA 22.2 #46 - M1988.
  • UL 2021, 1997

Benefits of Heating With Electric Infrared

  • Superior Comfort
  • Reduced Energy Consumption
  • Durability
  • Even Heat Distribution
  • Outdoor Tested & Approved
  • Long Lamp Life Expectancy

SPECIFICATIONS


SW2-46


BTU/h
24,909

Electrical
480 VAC

Control Amps
15.21 Amps

Watts
7,300

Overall Unit Length Inches
46 in.

Weight (lbs)

32




Series
SW2-46

Lamp Quantity
2

Recommended Mounting Height* [DIM A]
12 to 14 ft.

Recommended Distance Between
 Heaters [DIM B]

6 to 14 ft.

Approx. Coverage [C]
850 sq. ft.

Approx. Watts [C]
per Sq. Ft.: 8 to 9


per Sq. M: 0.7 to 0.8
Clearances to Combustibles in Inches

Mounting Angle
Side
End
Top
Below


Front
Behind




28
28
26
6
86







45°
86
4
26
10
86
