Sanhua FD-082-S Filter-Driers - 1/4" ODF, molded core (DTG-F08020-901)

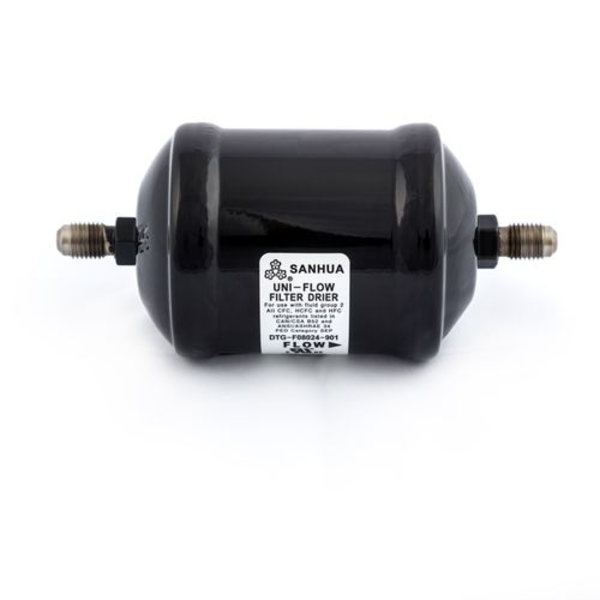

Sanhua FD-082-S Filter-Drier
Sanhua FD-082-S is a refrigeration protection or cleanup part for systems that call for 1/4" ODF, molded core and Sanhua P/N DTG-F08020-901.
Application notes

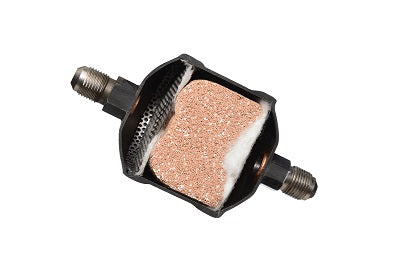

The sealed filter-drier protects unidirectional refrigeration circuits by absorbing moisture and acid while filtering solid impurities. Match the connection size, refrigerant, and capacity to the system.
Key ordering details
- Product group: Filter-Driers
- Description: 1/4" ODF, molded core
- Aftermarket PN: FD-082-S
- Sanhua P/N: DTG-F08020-901
- U11 code: 10230018142
- UPC: 842407100088
- A2L okay: Yes
- Case quantity: 24
Match the aftermarket PN, Sanhua P/N, connection size, and refrigerant/application requirements to the equipment record or original component label before purchase.
$18.69 USD
SKU:
FD-082-S
SPECIFICATIONS
| Primary UoM | Each | |
| Primary Depth (inches | 6.3 | |
| Primary Width (inches | 2.87 | |
| Primary Height (inches) | 2.87 | |
| Primary Weight (lbs) | 1.29 |
