Sanhua FD-304 Filter-Driers - 1/2" SAE, molded core (DTG-F30044-901)

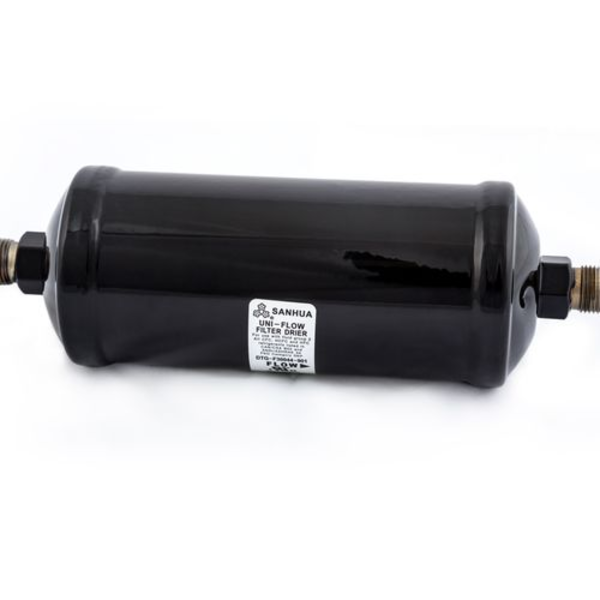

Sanhua FD-304 Filter-Drier
Sanhua FD-304 is a refrigeration protection or cleanup part for systems that call for 1/2" SAE, molded core and Sanhua P/N DTG-F30044-901.
Application notes

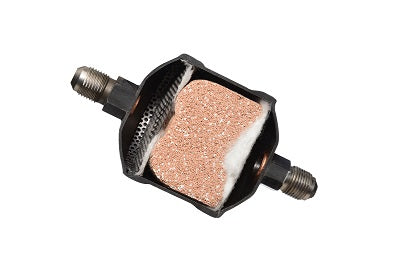

The sealed filter-drier protects unidirectional refrigeration circuits by absorbing moisture and acid while filtering solid impurities. Match the connection size, refrigerant, and capacity to the system.
Key ordering details
- Product group: Filter-Driers
- Description: 1/2" SAE, molded core
- Aftermarket PN: FD-304
- Sanhua P/N: DTG-F30044-901
- U11 code: 10230022042
- UPC: 842407100255
- A2L okay: Yes
- Case quantity: 12
Match the aftermarket PN, Sanhua P/N, connection size, and refrigerant/application requirements to the equipment record or original component label before purchase.
$50.22 USD
SKU:
FD-304
SPECIFICATIONS
| Primary UoM | Each | |
| Primary Depth (inches | 12.6 | |
| Primary Width (inches | 3.43 | |
| Primary Height (inches) | 3.43 | |
| Primary Weight (lbs) | 3.58 |
