Sanhua BV-21-S-T Ball Valves - 2-5/8" ODF with access valve (SBV(M)-JA21YHSY-2-SA)
Sanhua BV-21-S-T Ball Valves - 2-5/8" ODF with access valve (SBV(M)-JA21YHSY-2-SA)
Availability:
In-Stock

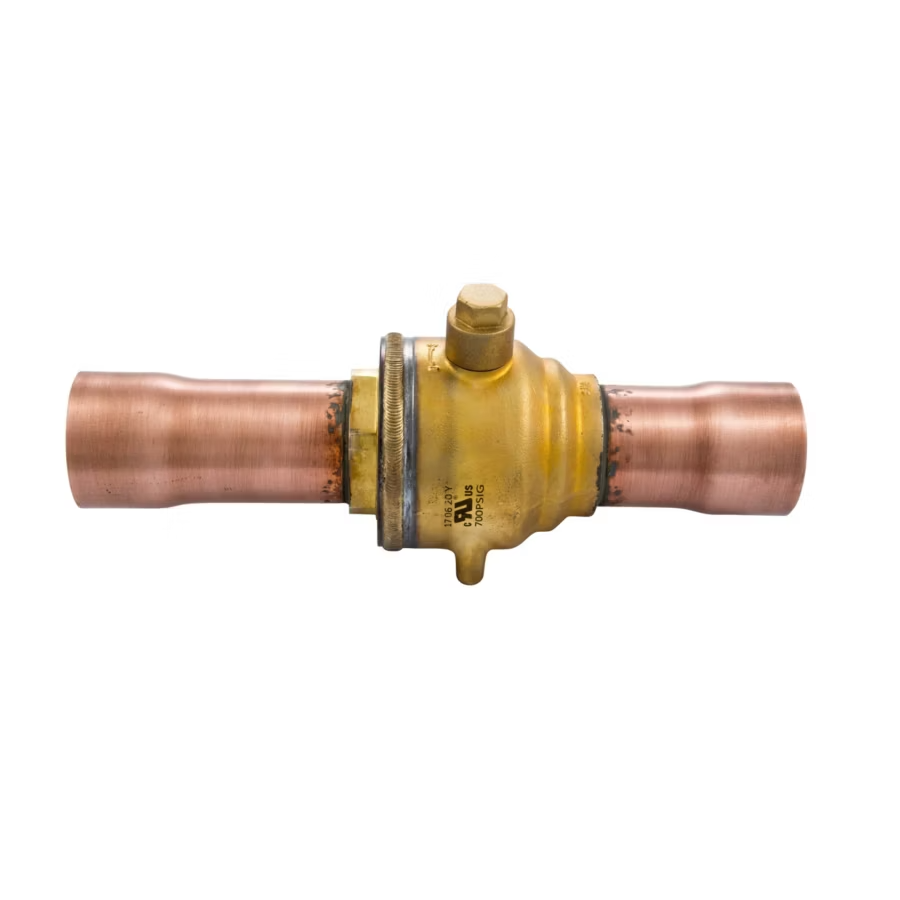

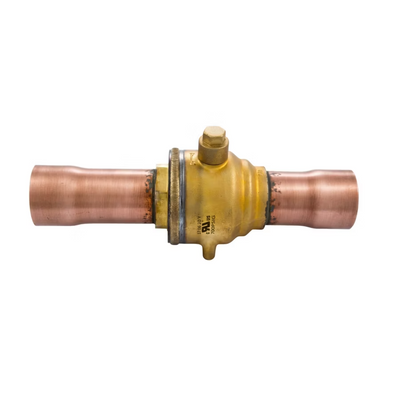

Sanhua BV-21-S-T Ball Valve
Use Sanhua BV-21-S-T to isolate refrigerant flow on systems that match 2-5/8" ODF with access valve, Sanhua P/N SBV(M)-JA21YHSY-2-SA, and the listed aftermarket part number.
Application notes
The SBV family supports common HCFC and HFC refrigerants, quarter-turn operation, and Sanhua-rated 700 psig working pressure, giving the circuit a clear shutoff point for installation or service.
Key ordering details
- Product group: Ball Valves
- Description: 2-5/8" ODF with access valve
- Aftermarket PN: BV-21-S-T
- Sanhua P/N: SBV(M)-JA21YHSY-2-SA
- U11 code: 10150056442
- UPC: 842407100897
- A2L okay: Yes
- Case quantity: 2
Match the aftermarket PN, Sanhua P/N, connection size, and refrigerant/application requirements to the equipment record or original component label before purchase.
$366.38 USD
SKU:
BV-21-S-T
Categories:
SPECIFICATIONS
| General Information | |
| Composition | Brass |
| Connection Type | Sweat or Braze |
| Ball Port Diameter | 2 5/8" |
| Inlet Connection Size | 2 5/8" |
| Capacity | Varies; See Specifications For Proper Application |
| UL Listed | Yes |
| Weight | 13.4 |
| Height | 5.59 |
| Length | 12 |
| Width | 4.48 |
