Sanhua BV-9-S-T Ball Valves - 1-1/8" ODF with access valve (SBV(M)-JA9YHSY-1-SA)

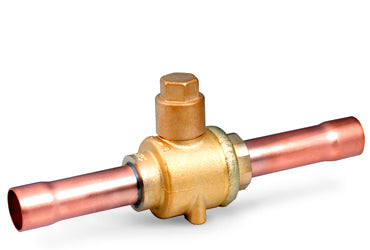

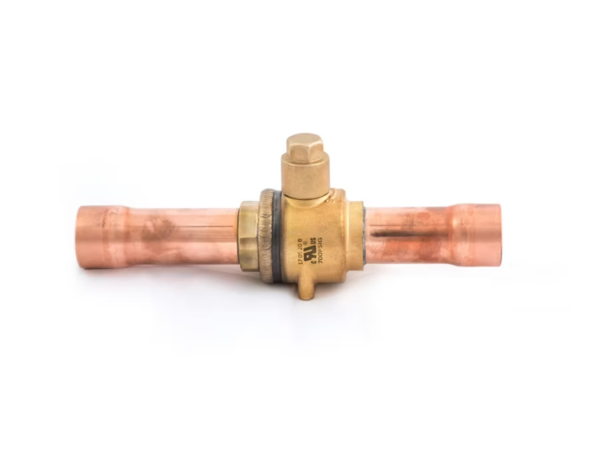

Sanhua BV-9-S-T Ball Valve
Sanhua BV-9-S-T is a refrigerant shutoff ball valve for systems that match 1-1/8" ODF with access valve, Sanhua P/N SBV(M)-JA9YHSY-1-SA, and the listed aftermarket part number.
Application notes
The SBV family supports common HCFC and HFC refrigerants, quarter-turn operation, and Sanhua-rated 700 psig working pressure, giving the circuit a clear shutoff point for installation or service.
Key ordering details
- Product group: Ball Valves
- Description: 1-1/8" ODF with access valve
- Aftermarket PN: BV-9-S-T
- Sanhua P/N: SBV(M)-JA9YHSY-1-SA
- U11 code: 10150054842
- UPC: 842407100859
- A2L okay: Yes
- Case quantity: 10
Match the aftermarket PN, Sanhua P/N, connection size, and refrigerant/application requirements to the equipment record or original component label before purchase.
$65.27 USD
SKU:
BV-9-S-T
SPECIFICATIONS
| General Information | |
| Composition | Brass |
| Connection Type | Sweat or Braze |
| Ball Port Diameter | 1-1/8" |
| Inlet Connection Size | 1-1/8" |
| Capacity | Varies; See Specifications For Proper Application |
| UL Listed | Yes |
| Weight | 1.6 |
| Height | 3.13 |
| Length | 8.2 |
| Width | 1.85 |
