Sanhua BV-4-S Ball Valves - 1/2" ODF without access valve (SBV04-019T)
Sanhua BV-4-S Ball Valves - 1/2" ODF without access valve (SBV04-019T)
Availability:
In-Stock

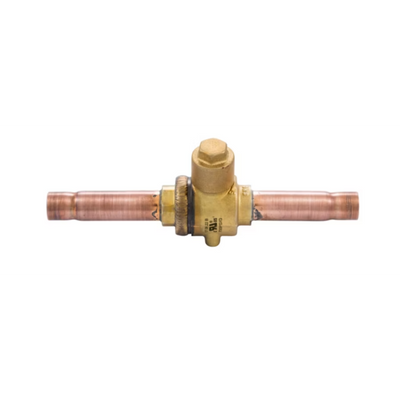

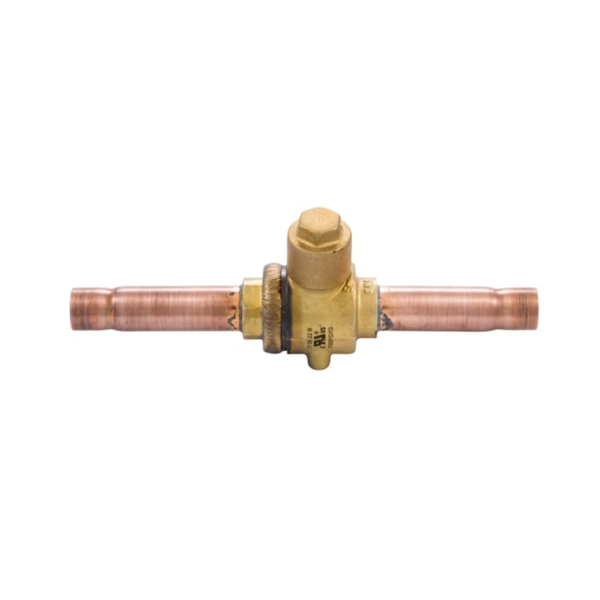

Sanhua BV-4-S Ball Valve
Use Sanhua BV-4-S to isolate refrigerant flow on systems that match 1/2" ODF without access valve, Sanhua P/N SBV04-019T, and the listed aftermarket part number.
Application notes
The SBV family supports common HCFC and HFC refrigerants, quarter-turn operation, and Sanhua-rated 700 psig working pressure, giving the circuit a clear shutoff point for installation or service.
Key ordering details
- Product group: Ball Valves
- Description: 1/2" ODF without access valve
- Aftermarket PN: BV-4-S
- Sanhua P/N: SBV04-019T
- U11 code: 10150090542
- UPC: 842407100927
- A2L okay: Yes
- Case quantity: 24
Match the aftermarket PN, Sanhua P/N, connection size, and refrigerant/application requirements to the equipment record or original component label before purchase.
$30.87 USD
SKU:
BV-4-S
Categories:
SPECIFICATIONS
| General Information | |
| Composition | Brass |
| Connection Type | Sweat or Braze |
| Ball Port Diameter | 1/2" |
| Inlet Connection Size | 1/2" |
| Refrigerant | R-134a / R-22 / R-404A / R-410A / R-507A |
| UL Listed | Yes |
| Weight | 0.66 |
| Height | 2.16 |
| Length | 6.3 |
| Width | 1.25 |
