Wall Mount Temperature/Humidity Sensor
Availability:
Out-Stock
Use the sensor to monitor both temperature and humidity in indoor conditions, coolers, warehouses, factories and many more applications. For example, use this sensor with an X-410 controller connected to a humidifier/dehumidifier to monitor and control humidity levels in production facilities or warehouses.
$10,000.00 USD
SKU:
X-DTHS-WMX
Categories:
SPECIFICATIONS
| Specification | |
| Temperature Range | -40°F to +180°F (-40°C to 80°C) |
| Temperature Accuracy | ±0.4°C (typ 0°C to 80°C) |
| Humidity Range | 0-99% RH |
| Humidity Accuracy | ±2% |
| Dimensions | 3" x 3 1/8" x 7/8" |
| Sensor measures both temperature and humidity |
| Wall-mountable enclosure |
| Sensor element has a PTFE cover to protect the sensor under harsh environmental conditions |

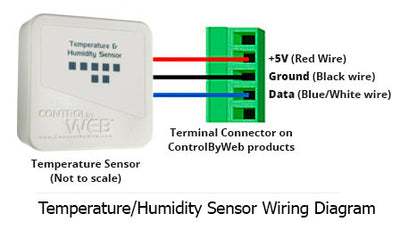

| No calibration needed, linearized, and temperature compensated Digital "1-Wire" interface |
ACCESSORIES
Monitor up to 32 modbus devices/sensors as well as a 1-Wire Bus for Temperature and Humidity Monitoring
SKU:
X-404-I
Vendor:
ControlByWeb
Type:
Web Controller
Availability:
Out-Stock
Sold Out
Modular, web-enabled, industrial I/O controller that allows you to add various combinations of I/O to tailor it to your specific application. Expansion modules can either...
