WebRelay-10/ Industrial Grade Remote Relay Control

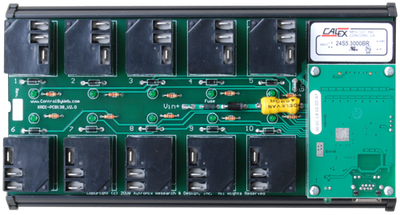

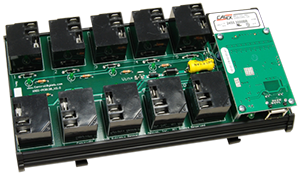

WebRelay-10™ is a robust, industrial relay board with Ethernet communications. It provides remote relay control through its ten large 15A relays.
The relays can be individually controlled using a standard web browser or by sending commands from a custom control application. It is self-contained with a built-in web server, and requires no external software, additional network modules, or computers.
WebRelay-10 is designed for industrial applications and can be DIN-Rail mounted inside a control cabinet. Tab connectors (1/4 inch) are used for power and relay contact connection.

Features:

WebRelay-10

• Ten independent 15A Relays - SPDT (Form C).
• Built-in web server for browser-based setup and control.
• No special software or device drivers required.
• XML status and control page make communications with custom computer applications simple.
• Can operate as a Modbus/TCP slave.
• On/Off and Pulse modes.

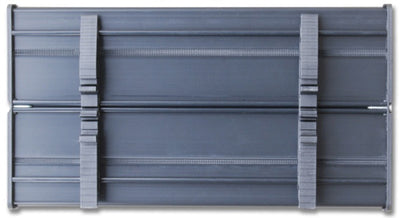

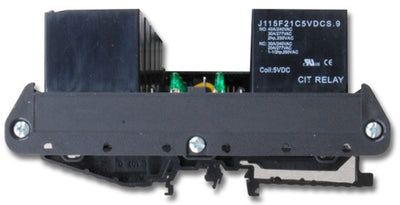

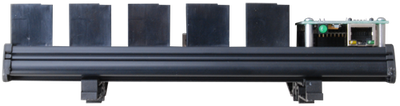

• DIN-Rail mountable.
• LEDs indicate the current relay state.
• 1/4-inch tab-connectors.
• Power Supply: 9-28 VDC.
• UL/CUL listed relays (E197852).

WebRelay-10 Part Numbers:

         X-WR-10R12-I
OUTPUTS: 10 Relays (15A 277VAC, 30VDC)
INPUTS: N/A
POWER SUPPLY: 9-28VDC

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• FCC 47CFR15 (Class B)
• EN55024 ITE Immunity (2010)
• EN55022 Emissions (2010)

Product Safety Compliance:

• IEC 61010-1
