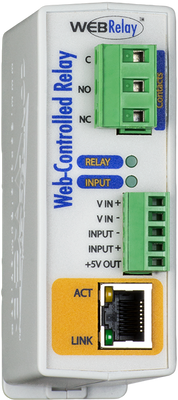

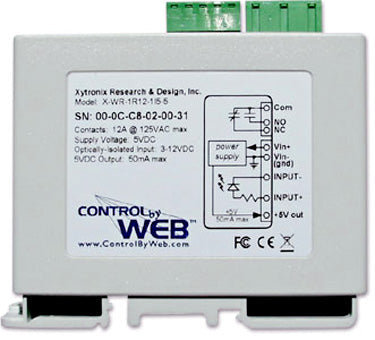

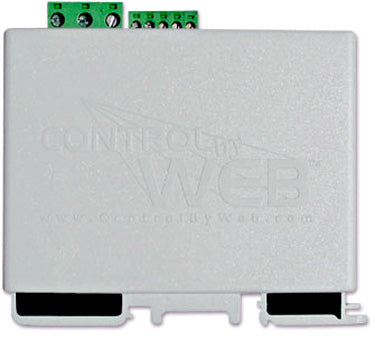

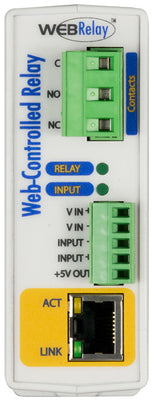

WebRelay | Single Relay and Input Module

WebRelay, can provide remote relay control in countless applications including pump and motor control, security lock systems, remote reboot, and lighting control. WebRelay's powerful and flexible design make imagination its only limit.

WebRelay also has an optically isolated input that can be used to monitor the state of devices, control the relay, or control a remote relay somewhere else on the network. This feature is useful to extend the output of a PLC to another building or to allow a switch to control a device in another state.

Features:

• No programming required
• Full control using a standard web browser or text-based XML messages
• Can operate as a Modbus/TCP slave
• Password protected
• 12A relay contacts
• ON/OFF or Pulsed relay modes
• Optically-isolated input uses: Monitoring; Relay control; Remote relay control (peer-to-peer)
• Auto-Reboot controller mode for remote reboot of network devices
• Selectable TCP ports
• Removable terminal connectors included
• DIN rail or wall-mount
• Power supply options: 9-28VDC; POE and/or 9-28VDC
• Five-Year Warranty

Examples:

       1. Web Control

Simply connect the relay contacts to the device to be controlled, and switch the relay on and off remotely using a web browser (see Figure 1).
WebRelay provides an optically-isolated input which allows you to monitor the state of a device or control the relay contacts by applying a voltage.

       2. Peer-to-Peer Control

WebRelay can even be used without a computer (once setup is complete) by connecting two units together. This is done by connecting a switch or applying a control voltage to one unit, and connecting a second unit at a remote location to the device to be controlled.
Figure 2 illustrates how a PLC can control a motor in another building by using two units.

WebRelay Models:

       1. WebRelay | Industrial: Digital input range of 4-26 VDC
PART NUMBER:

• X-WR-1R12-1I-I

OUTPUTS:

• Relays: 1
• Current: 12A 240VAC, 30VDC

INPUTS:

• Digital: 1
• Range: 4-26 VDC

POWER SUPPLY:

• 9-28VDC*

       2. WebRelay | POE (Power Over Ethernet, 802.3af compliant network): POE with Digital input range of 4-26 VDC
PART NUMBER:

• X-WR-1R12-1I-E

OUTPUTS:

• Relays: 1
• Current: 12A 240VAC, 30VDC

INPUTS:

• Digital: 1
• Range: 4-26 VDC

POWER SUPPLY:

• POE and/or 9-28VDC*

 Applications

WebRelay™ provides reliable remote relay control and discrete signal monitoring over any IP network. WebRelay, can provide remote relay control in countless applications including pump and motor control, security lock systems, remote reboot, and lighting control.

WebRelay's powerful and flexible design make imagination its only limit.

• Control devices such as pumps, valves, motors, coils, etc. over the web or a local network.
• Turn lights on/off while using IP video cameras.
• Control electronic door locks and garage door openers.
• Monitor gates, doors, windows, etc.
• Home automation.
• Security applications
• Remotely reboot computers, servers, etc. (PDF)
• Connect a digital output of any PLC or industrial controller to the input of WebRelay to control another WebRelay device somewhere else on the network.
• Extend buttons and switches to control devices from a remote location.
• Connect a WebRelay unit to a door sensor at your office, factory, store, etc.

LED Indicators

Number of LEDs: 4

• Digital input voltage applied
• Relay coil energized
• Network linked
• Network activity

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• EU EN55024, EN55022
• FCC 47CFR15 (-I Models class B, -E POE Model Class A)

Product Safety Compliance:

• UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use) - Models: X-WR-1R12-1I-I and X-WR-1R12-1I-E
