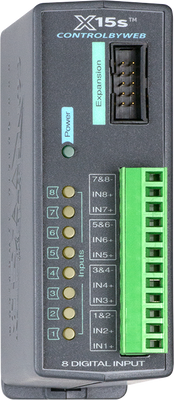

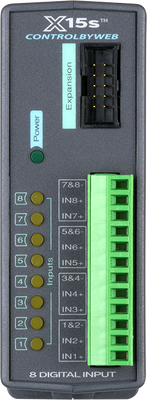

X-15s | Eight Digital Input Expansion Module

The X-15s has eight optically-isolated digital inputs and is an expansion module for an X-400 or X-600M controller. The X-15s' isolated inputs are suitable for industrial environments and allow the grounding system of the monitored equipment and the low voltage circuits of the X-15s to be electrically separate.
Internally the X-15s has a co-processor which provides enhanced features including: pulse counting, pulse duration, accumulated pulse time and frequency measurements. All 8-inputs have separate measurements.
One or more X-15s expansion modules can be connected to an X-400 or X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules.
Other expansion modules with different I/O combinations are also available.

Features:

• 8 Optically-isolated digital inputs
• Digital input functions: Monitor State, Control Relays, Control Remote Relays, Count, Frequency, High Time, ON Time
• Eight LEDs for inputs 1-8
• Removable terminal connector
• Powered through expansion bus - no separate power supply connections are required
• Great for monitoring applications including:

1. Button/Switch Inputs
2. Security Sensors
3. Flow Meters
4. Machine Status
5. and much more...

X-15s Part Numbers:

       X-15s
OUTPUTS: N/A
INPUTS: Digital: 8 (3-26VDC)
POWER SUPPLY: 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended)

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• FCC 47CFR15 (Class B)
• EN55024 ITE Immunity (2010)
• EN55022 Emissions (2010)

Product Safety Compliance:

• UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use)
