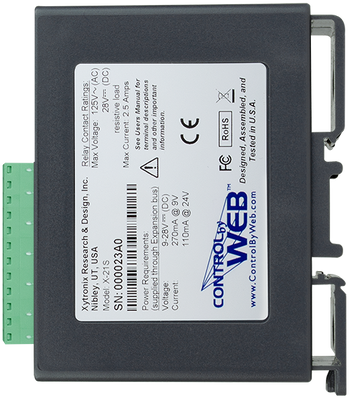

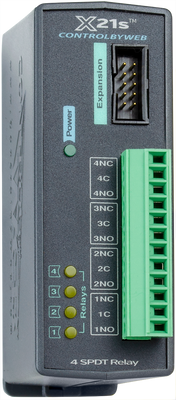

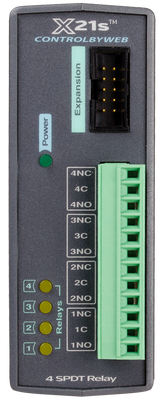

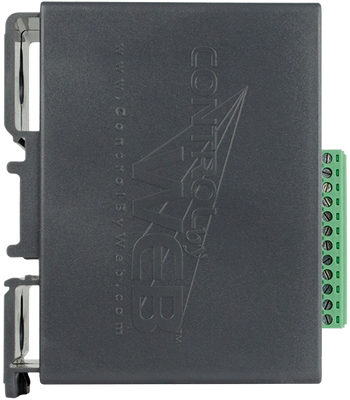

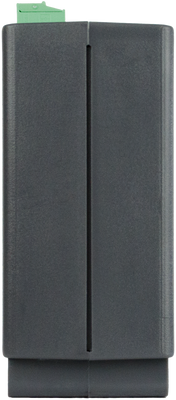

X-21s | Four Relay Form C / SPDT Expansion Module

The X-21s™ Four Relay Expansion Module is used with an X-400 or X-600M controller. The X-21s has four relays each with Form-C/SPDT contacts.

Required Controller
One or more X-21s expansion modules can be connected to an X-400/X-600M controller with an expansion cable. The expansion cable provides both power and communications to the expansion modules.

Controller Features
The X-400/X-600M are multi-function web-enabled industrial I/O controllers. They perform control, logic, and monitoring functions similar to that of a Programmable Logic Controller (PLC). However, unlike a PLC, these controllers are designed for web-based applications from the ground up.

No add-on software or hardware is required. The controllers can be fully configured, programmed and tested directly in the device using its built-in web server and a standard web browser. The web setup pages are intuitive and easy to use and do not require special programming skills.

Applications
The X-400/X-600M controllers, together with expansion modules, such as the X-21s, provide an easy, flexible, and reliable way to monitor and control systems and devices over a network. The X-21s is suitable for use with moderate loads such as solenoid valves, alarms, and indicator lights.
Other expansion modules with different I/O combinations are also available.

Tank Battery Level Monitoring with Pump and Valve Control

Features:

• Four, Form C/SPDT relays (independently controlled)

1. Voltage: 125VAC, 28VDC
2. Current: 2.5A

• LED indicators for relay and power status
• Operating Temp: -40°F to 122°F (-40°C to 50°C)
• Storage Temp: -40°F to 185°F (-40°C to 85°C)
• Removable terminal connector
• Powered through expansion bus - no separate power supply connections are required
• Requires an X-400 or X-600M controller
• Great for moderate-load applications including:

1. Solenoid valves
2. Alarms
3. Indicator lights
4. and much more...

X-21s Part Number:

X-21s
OUTPUTS:

• Relays: 4 Form C / SPDT (Form C) (125VAC, 28VDC, 2.5A)

POWER SUPPLY:

• 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended)

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24
• FCC 47CFR15 (Class B)
• EN55024 ITE Immunity (2010)
• EN55022 Emissions (2010)

Product Safety Compliance

• IEC 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use)
